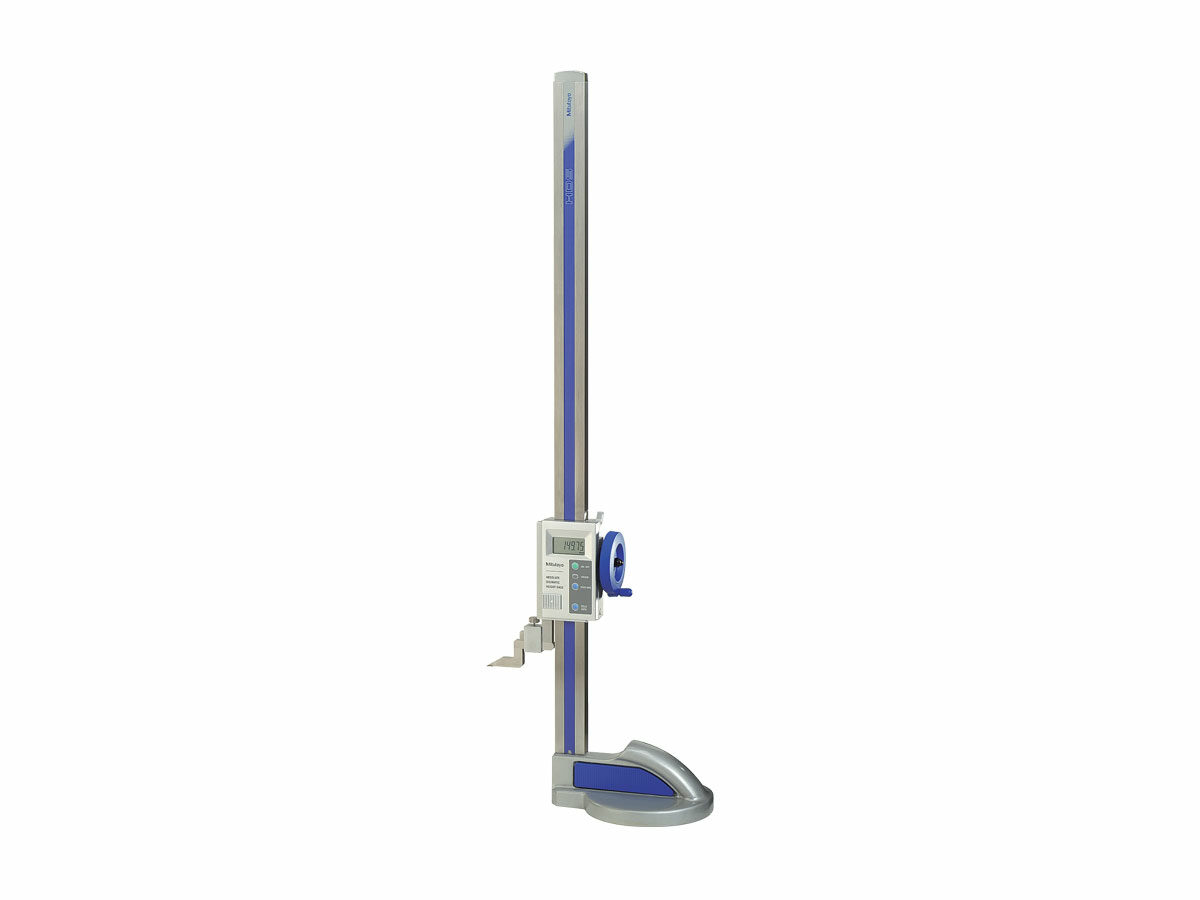

The Mitutoyo ABSOLUTE Digimatic Height Gage with Slider Feed Wheel provides highly accurate height measurements with durability, excellent functionality and cost performance. Measurements are shown on a large, easy-to-read LCD display.
Features & Benefits
The Mitutoyo ABSOLUTE digital height gage features a large slider feed wheel for easy, smooth measurements. The built-in ABSOLUTE linear encoder eliminates the need for setting the reference point at every power on, making accurate measurements quick and easy. The hand-operated slider with fine adjustment carriage makes movements smooth and measurements precise. Includes a carbide-tipped long scriber which is highly durable and creates accurate marks on your workpiece.
- Available in Metric and Inch/Metric models
- Large clamp lever provides reliable slider clamp operation
- Metric models are available in ranges of: 0-300mm and 0-600mm
- Inch/Metric models available in ranges of: 0-12”/0-300mm, 0-18”/0-450mm and 0-24”/0-600mm
- SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
- Display features large LCD characters (11mm in height) for easier measurement reading and reduced eye strain
- Large function buttons on display are positioned for easy operation
- Durable, rigid construction ensures repeatable measurements over a longer lifespan
- Base is shaped to provide a secure grip
- Functions include Origin setting, ABS/INC switching, Power On/Off, -/+ switching, Data hold, Data output, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
SERIES 570 Technical Data
| Technology: | Digimatic |
|---|---|
| Length Standard: | ABSOLUTE electrostatic capacitance type linear encoder |
| Max Response Speed: | Unlimited |
| Display: | LCD |
| Battery: | SR44 (1 pc.) 938882 |
| Battery life: | Approx. 20,000 hours under normal use |
| SPC Output: | Yes |
Product List
| Order No.: | Product Image: | Units: | Range: | Resolution: | Accuracy: | Mass: | Required Accessories: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|
| 570-302 | - | Metric | 0-300mm | 0.01mm | ±0.03mm | 4.6kg | - | |

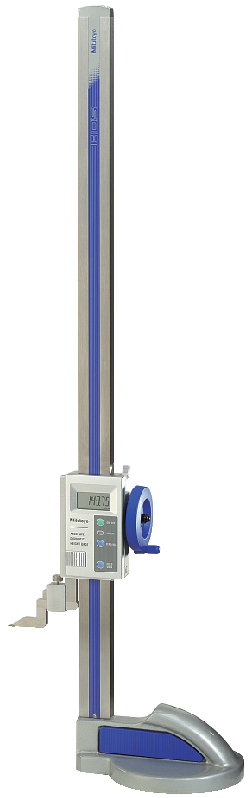

| 570-304 |  |
Metric | 0-600mm | 0.01mm | ±0.05mm | 6.4kg | - | |

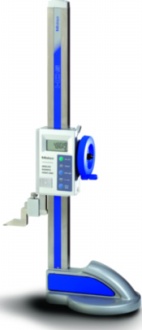

| 570-312 |  |
Inch | 0-300mm / 0-12" | 0.01mm / 0.0005" | ±0.0015" | 4.6kg | Accessories | |
| 570-313 | - | Inch | 0-450mm / 0-18" | 0.01mm / 0.0005" | ±0.002" | 5.9kg | Accessories | |
| 570-402 | - | Metric | 0-300mm | 0.01mm | ±0.03mm | 4.6kg | Accessories | |
| 570-404 | - | Metric | 0-600mm | 0.01mm | ±0.05mm | 6.4kg | Accessories | |
| 570-412 | - | Inch | 0-300mm / 0-12" | 0.01mm / 0.0005" | ±0.0015" | 4.6kg | Accessories | |
| 570-413 | - | Inch | 0-450mm / 0-18" | 0.01mm / 0.0005" | ±0.002" | 5.9kg | Accessories | |
| 570-414 | - | Inch | 0-600mm / 0-24" | 0.01mm / 0.0005" | ±0.002" | 6.4kg | Accessories |
