The Mitutoyo Vernier Height Gage provides highly precise height measurements through a second sliding scale and offers several features that allows for easier use.
Vernier Height Gage with Adjustable Main Scale
Features & Benefits
The Mitutoyo Vernier height gage slider and beam are constructed of hardened stainless steel and the beam is adjustable with a ring-type lock nut to support repositioning of the zero reference point. The hand-operated slider features a fine-adjustment carriage for precise feeding. The Vernier sliding scale provides measurements between marks on the main scale for ultra-precise readings.
- Available in Metric and Inch models
- Optional magnifier is available for easier reading
- Zero reference point can be adjusted for manual change of the base position
- Scriber is carbide tipped for accuracy and durability
- Scales have a satin chrome finish to reduce glare for easier reading
- Base is shaped to allow a secure grip
- Fine feeding carriage provides precise measurements
Technical Data
| Technology: | Mechanical |
|---|
Product List
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Mass: | Graduation: | Main scale adjustment: | Slider fine feed: | Required Accessories: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|

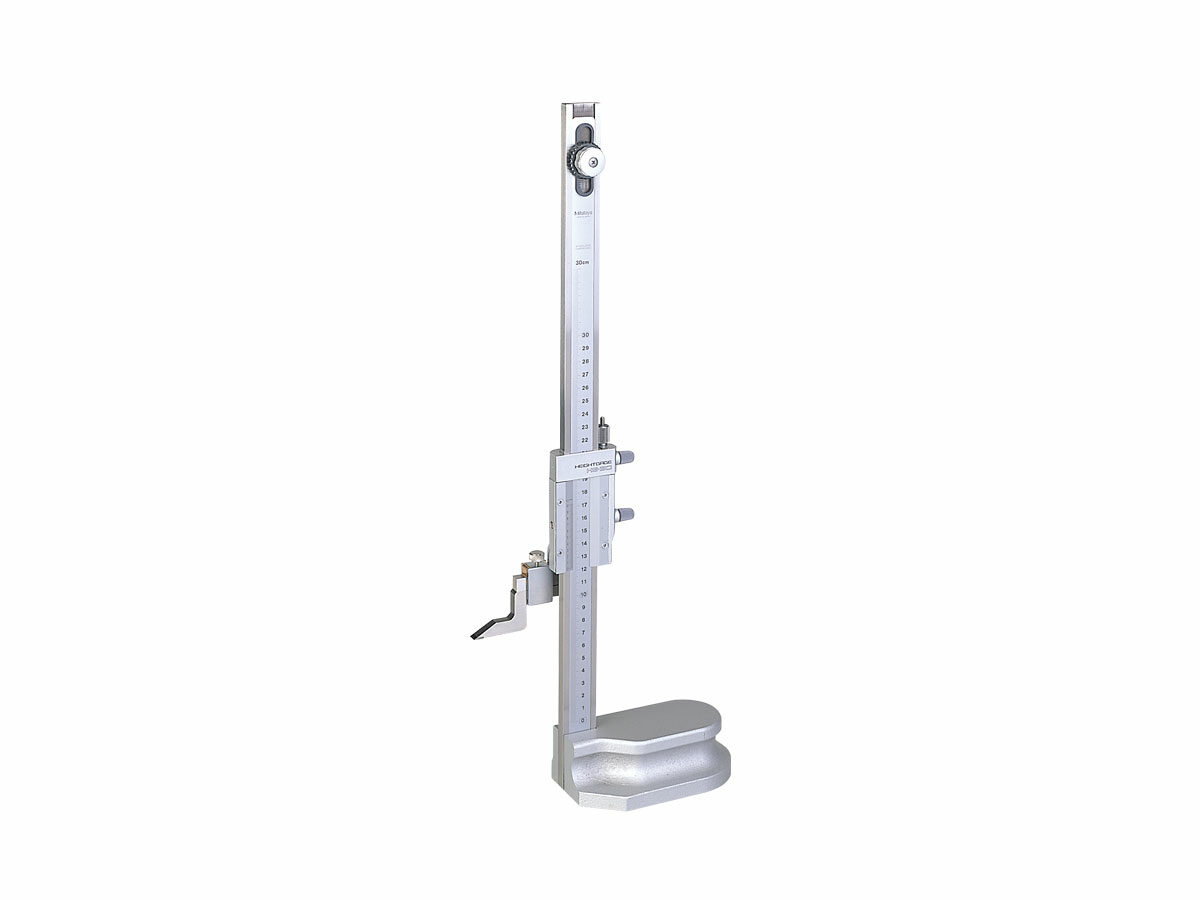

| 514-102 |  |
Metric | 0-300mm | ±0.04mm | 3.1kg | 0.02mm | 15mm | 4mm | - | |

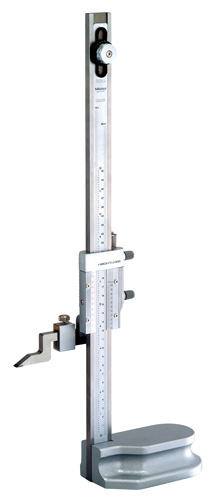

| 514-103 |  |
Metric, Inch | 0-300mm / 0-12" | ±.002" | 3.1kg | 0.02mm / 0.001" | 15mm | 4mm | - | |
| 514-104 | - | Metric | 0-450mm | ±0.05mm | 3.4kg | 0.02mm | 15mm | 4mm | - | |

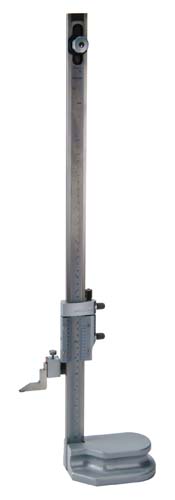

| 514-105 |  |
Metric, Inch | 0-450mm / 0-18" | ±.002" | 3.4kg | 0.02mm / 0.001" | 15mm | 4mm | - | |
| 514-106 | - | Metric | 0-600mm | ±0.05mm | 7.4kg | 0.02mm | 15mm | 7mm | - | |

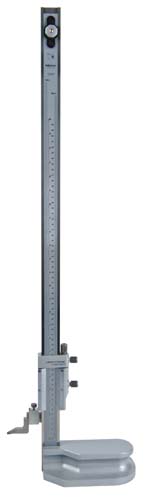

| 514-107 |  |
Metric, Inch | 0-600mm / 0-24" | ±.002" | 7.4kg | 0.02mm / 0.001" | 15mm | 7mm | - | |

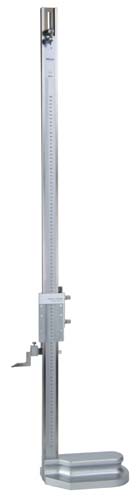

| 514-108 |  |
Metric | 0-1000mm | ±0.07mm | 20.0kg | 0.02mm | 25mm | 6mm | - | |
| 514-109 | - | Metric, Inch | 0-1000mm / 0-40" | ±.003" | 20.0kg | 0.02mm / 0.001" | 25mm | 6mm | - |
