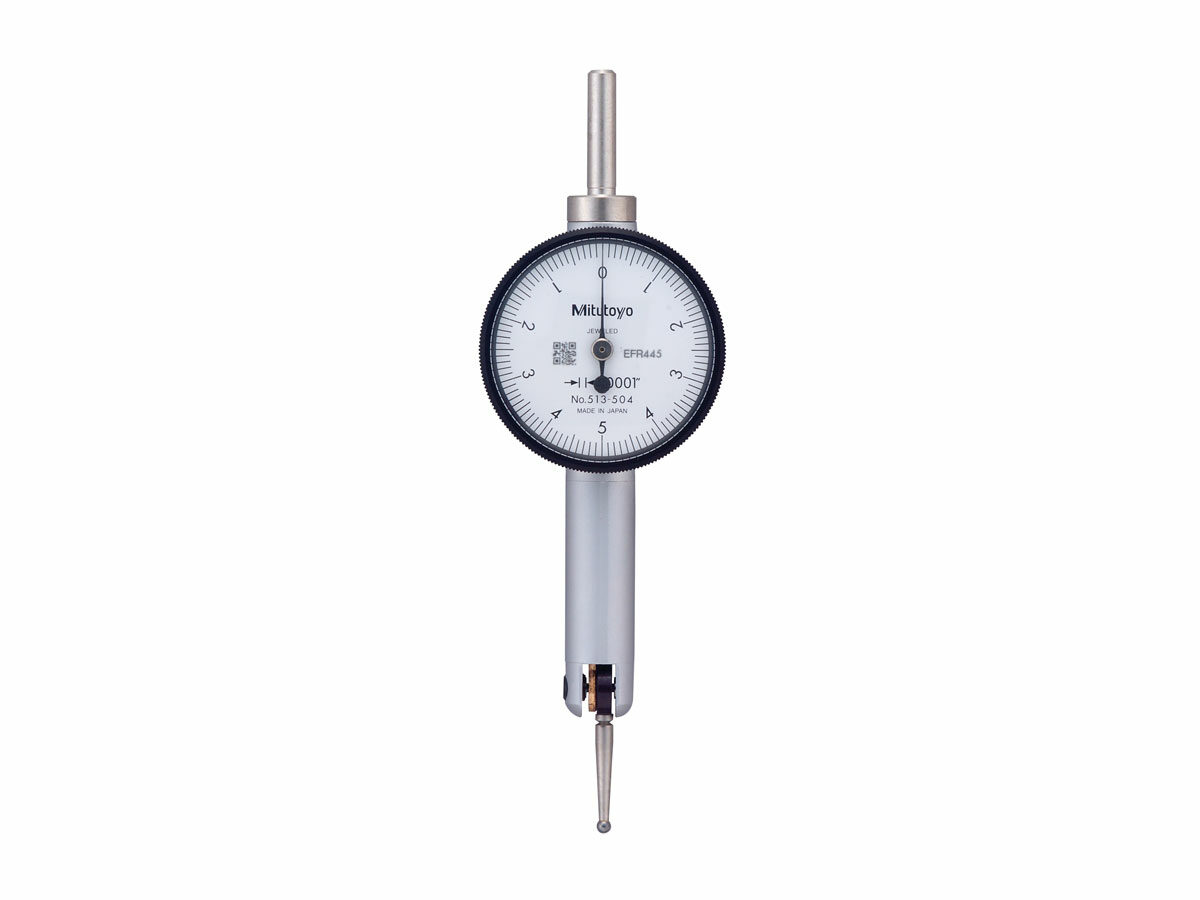

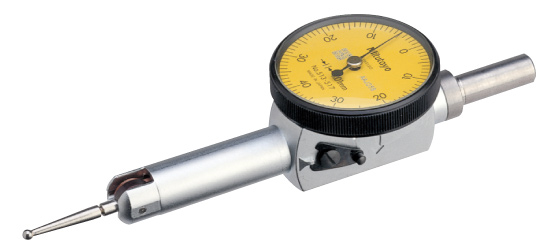

The Mitutoyo pocket type dial test indicator features a slim profile which allows precision measurements in small, narrow spaces.
Features & Benefits
The Mitutoyo pocket dial test indicator has a reversible measuring direction and adjustable contact point to measure surface variations in narrow or recessed areas. The pocket type indicator has a horizontal face parallel to the axis, and three dovetail mounts allow for horizontal or vertical mounting from the front, top or back of the indicator. The indicator’s one-piece movement provides high-impact resistance and better durability, while jeweled bearings deliver high sensitivity and quick response.
- Available in Metric and Inch models
- Metric models feature yellow dial face
- Inch models feature white dial face
- No-clutch structure provides automatic reversal of measuring direction
- O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
- Contact point is adjustable within 220° of the axis
- Newly designed contact point holder prevents backlash
- Contact point is carbide tipped for lasting accuracy, durability
- Crystal is glare-free with a scratch-resistant coating

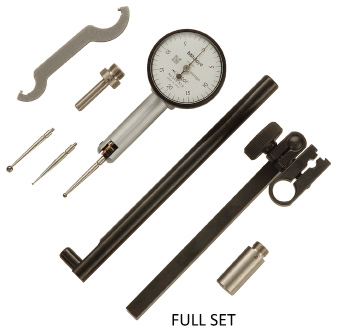

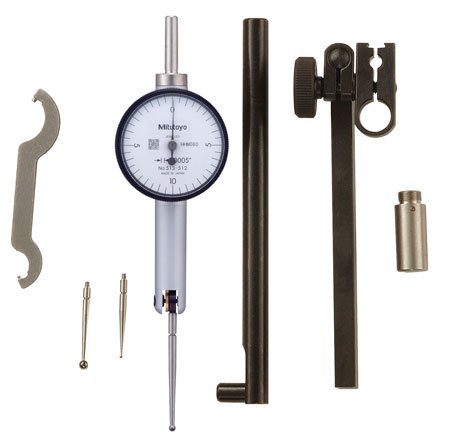

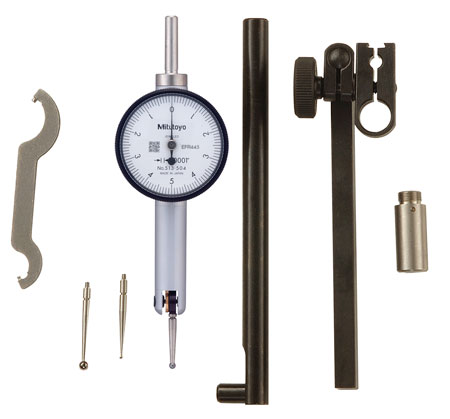

- Full set includes the indicator and contact points
- Supplied in a fitted plastic case

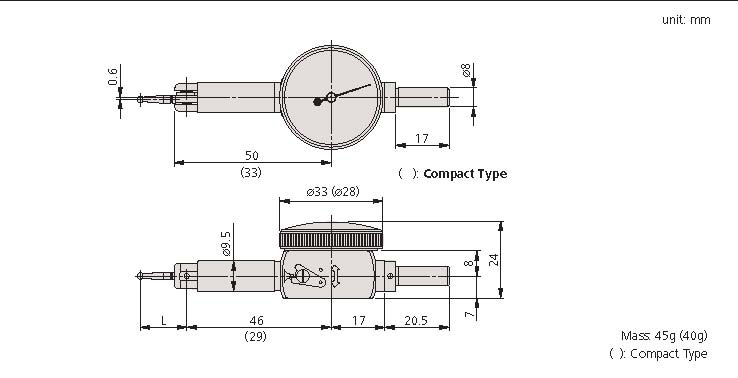

SERIES 513 Technical Data
| Technology: | Mechanical |
|---|---|
| Contact Point: | Carbide |
| Jeweled Bearing: | Yes |
Product List

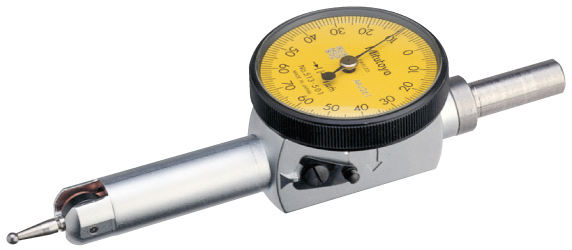

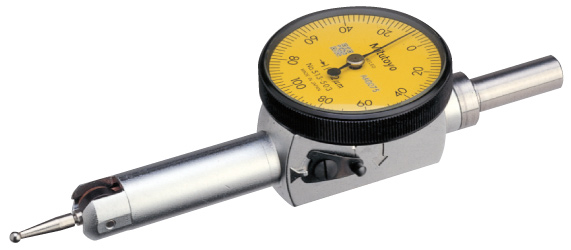

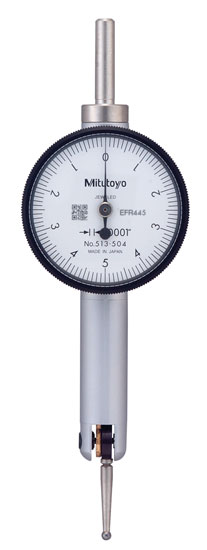

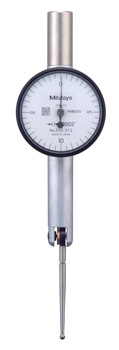

| Order No.: | Product Image: | Units: | Contact point length: | Graduation: | Basic set: | Full set: | Min Range: | Max Range: | Dial reading: | Accuracy: | Measuring Force: | Long Contact Point: | Compact: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 513-501E |  |
Metric | 12mm | 0.001mm | Yes | - | 0mm | 0.14mm | 0-70-0 | ±3µm | 0.4 or lessN | - | - | - |
| 513-501T | - | Metric | 12mm | 0.001mm | - | Yes | 0mm | 0.14mm | 0-70-0 | ±3µm | 0.4 or lessN | - | - | - |
| 513-503E |  |
Metric | 14.7mm | 0.002mm | Yes | - | 0mm | 0.2mm | 0-100-0 | ±3µm | 0.3 or lessN | - | - | - |
| 513-503T | - | Metric | 14.7mm | 0.002mm | - | Yes | 0mm | 0.2mm | 0-100-0 | ±3µm | 0.3 or lessN | - | - | - |
| 513-504 |  |
Inch | 18.7mm | .0001"" | Yes | - | 0" | .01" | 0-5-0 | ±.0002" | 0.3 or lessN | - | - | - |
| 513-504T |  |
Inch | 18.7mm | .0001"" | - | Yes | 0" | .01" | 0-5-0 | ±.0002" | 0.3 or lessN | - | - | - |
| 513-512 |  |
Inch | 37.4mm | 0005"" | Yes | - | 0" | .02" | 0-10-0 | ±.0005" | 0.3 or lessN | Yes | - | - |
| 513-512T |  |
Inch | 37.4mm | 0005"" | - | Yes | 0" | .02" | 0-10-0 | ±.0005" | 0.3 or lessN | Yes | - | - |
| 513-514E | - | Metric | 36.8mm | 0.01mm | Yes | - | 0mm | 0.5mm | 0-25-0 | ±10µm | 0.3 or lessN | Yes | - | - |
| 513-514T | - | Metric | 36.8mm | 0.01mm | - | Yes | 0mm | 0.5mm | 0-25-0 | ±10µm | 0.3 or lessN | Yes | - | - |
| 513-515T | - | Metric | 44.5mm | 0.01mm | - | Yes | 0mm | 1mm | 0-50-0 | ±10µm | 0.3 or lessN | Yes | - | - |
| 513-517E |  |
Metric | 20.9mm | 0.01mm | Yes | - | 0mm | 0.8mm | 0-40-0 | ±8µm | 0.3 or lessN | - | - | - |
| 513-517T | - | Metric | 20.9mm | 0.01mm | - | Yes | 0mm | 0.8mm | 0-40-0 | ±8µm | 0.3 or lessN | - | - | - |

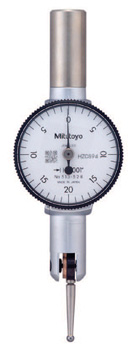

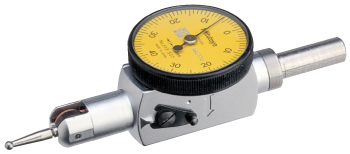

| 513-518 |  |
Inch | 26.5mm | .001" | Yes | - | 0" | .04" | 0-20-0 | ±.001" | 0.3 or lessN | - | - | - |
| 513-518T |  |
Inch | 26.5mm | .001" | - | Yes | 0" | .04" | 0-20-0 | ±.001" | 0.3 or lessN | - | - | - |
| 513-527E |  |
Metric | 14.7mm | 0.01mm | Yes | - | 0mm | 0.8mm | 0-40-0 | ±8µm | 0.3 or lessN | - | Yes | - |
| 513-527T | - | Metric | 14.7mm | 0.01mm | - | Yes | 0mm | 0.8mm | 0-40-0 | ±8µm | 0.3 or lessN | - | Yes | - |
| 513-528 |  |
Inch | 18.7mm | .001" | Yes | - | 0" | .04" | 0-20-0 | ±.001" | 0.3 or lessN | - | Yes | - |
| 513-528T | - | Inch | 18.7mm | .001" | - | Yes | 0" | .04" | 0-20-0 | ±.001" | 0.3 or lessN | - | Yes | - |
