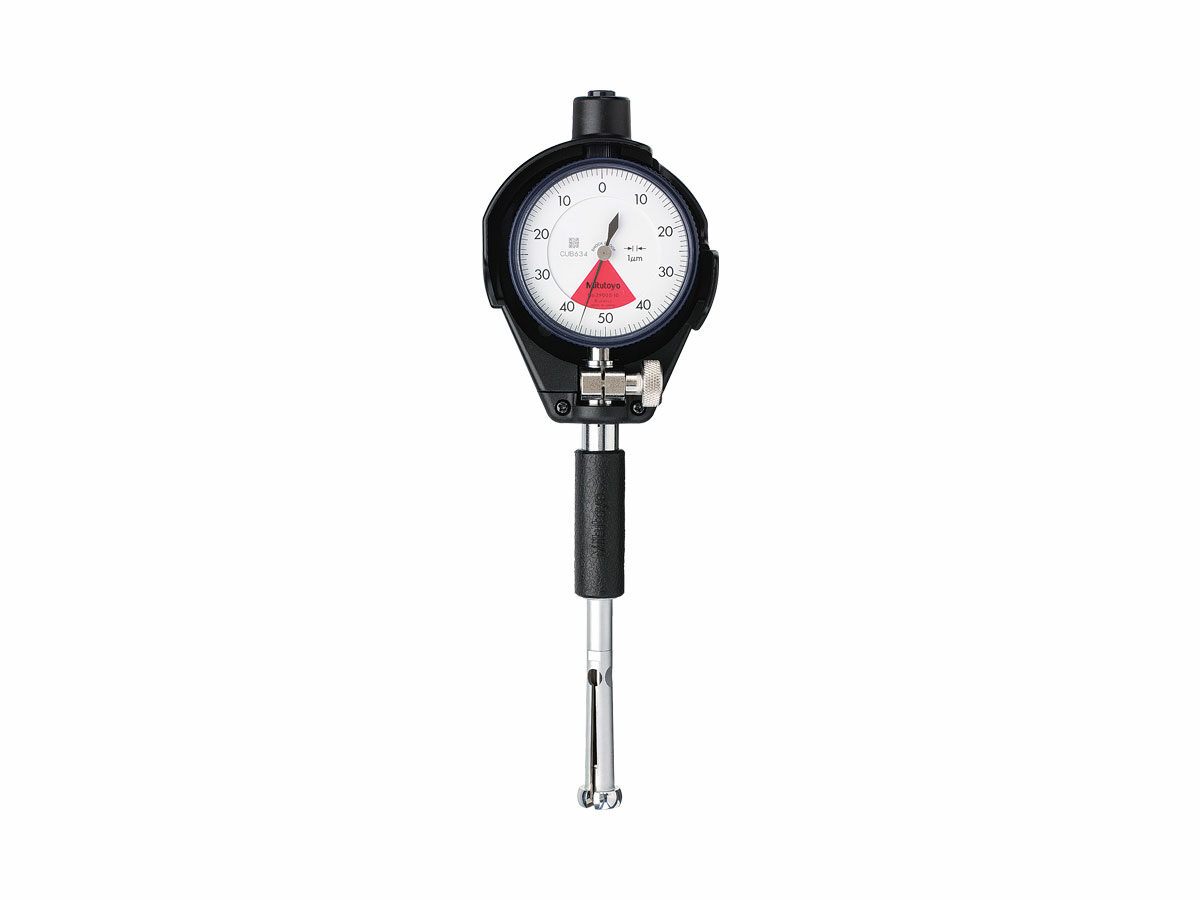

The Mitutoyo bore gages for extra small holes converts the radial displacement of the split-ball contact to axial displacement of the measuring rod for highly accurate measurements of holes as small as 0.95mm in diameter.
Series 526
Bore Gage-Extra Small Holes-8mm-No Cover or Indicator
Features & Benefits
The Mitutoyo extra small hole bore gage features a split-ball design with stainless steel contact points to measure a hole’s inside diameter and identify out-of-roundness issues with an accuracy to +/-4µ. These bore gages come in various measuring ranges from 0.95mm – 18mm.
- Does not include a Mitutoyo Dial Indicator
- Available in Metric models
- Each bore gage model comes with a set of anvil sizes
- Models with dial indicators are fully protected by a rugged cover
- Gage stem diameter is 8mm
- Interchangeable anvils are constructed of stainless steel for added accuracy and durability
- Supplied in a plastic case
SERIES 526 Technical Data
| Technology: | Mechanical |
|---|---|
| Units: | Metric |
| Stem Diameter: | 8mm |
| With Dial Gage Protective Cover (21DZA000): | No |
| Accessories: | Accessories |
Product List
| Order No.: | Product Image: | Range: | Number of anvils: | Number of needles: | Probe depth: |
|---|---|---|---|---|---|
| 526-101 | - | 7 - 10mm | 6 | 1 | 56mm |
| 526-101-20 | - | 7 - 10mm | 6 | 1 | 56mm |
| 526-102 | - | 10 - 18mm | 8 | 1 | 62mm |
| 526-102-20 | - | 10 - 18mm | 8 | 1 | 62mm |
| 526-150-10 | - | 3.7 - 7.3mm | 7 | 1 | 32mm |
| 526-150-11 | - | 3.7 - 7.3mm | 7 | 1 | 32mm |
| 526-150-20 | - | 3.7 - 7.3mm | 7 | 1 | 32mm |
| 526-150-21 | - | 3.7 - 7.3mm | 7 | 1 | 32mm |
| 526-160-10 | - | 1.5 - 3.95mm | 9 | 2 | 17.5, 22.5mm |
| 526-160-11 | - | 1.5 - 3.95mm | 9 | 2 | 17.5, 22.5mm |
| 526-160-20 | - | 1.5 - 3.95mm | 9 | 2 | 17.5, 22.5mm |
| 526-160-21 | - | 1.5 - 3.95mm | 9 | 2 | 17.5, 22.5mm |
| 526-170-10 | - | 0.95 - 1.55mm | 5 | 1 | 11.5mm |
| 526-170-11 | - | 0.95 - 1.55mm | 5 | 1 | 11.5mm |
| 526-170-20 | - | 0.95 - 1.55mm | 5 | 1 | 11.5mm |
| 526-170-21 | - | 0.95 - 1.55mm | 5 | 1 | 11.5mm |
