The Mitutoyo standard type bore gages feature interchangeable anvils and spacers to take highly accurate diameter measurements of a wide range of bore hole sizes. Models are available without a cover or Mitutoyo Dial Indicator.
Features & Benefits
The Mitutoyo standard type bore gage is available in measuring ranges from .7″-6″ to measure inside bore diameters with accuracy to .00008”. The bore gage comes with interchangeable anvils to measure various bore diameters with the same gage. A pendulum guide structure improves the slide of the gage for measurements while a two-point contact system detects geometry anomalies such as ovalness and taper.
- Does not include a Mitutoyo Dial Indicator
- Available in Inch models
- Optional extension rods are available to measuring deep hole with accuracy
- Large, newly designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
- Models with dial indicators are fully protected by a rugged cover
- Gage stem diameter is .375”
- Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
- Supplied in a fitted plastic case
SERIES 511 Technical Data
| Technology: | Mechanical |
|---|---|
| Contact Point: | Carbide Tipped |
| Units: | Inch |
| Stem Diameter: | 3/8" |
| With Dial Gage Protective Cover (21DZA000): | No |
Product List
| Order No.: | Product Image: | Range: | Number of anvils: | Number of spacers: |
|---|---|---|---|---|
| 511-731 | - | 0.7-1.4" | 9 | 2 |
| 511-732 | - | 1.4-2.5" | 6 | 4 |
| 511-733 | - | 2-6" | 11 (2" Sub Anvil) | 4 |
| 511-734 | - | 4-6.5" | 13 | 4 |
| 511-735 | - | 6.5-10" | 6 | 7 |

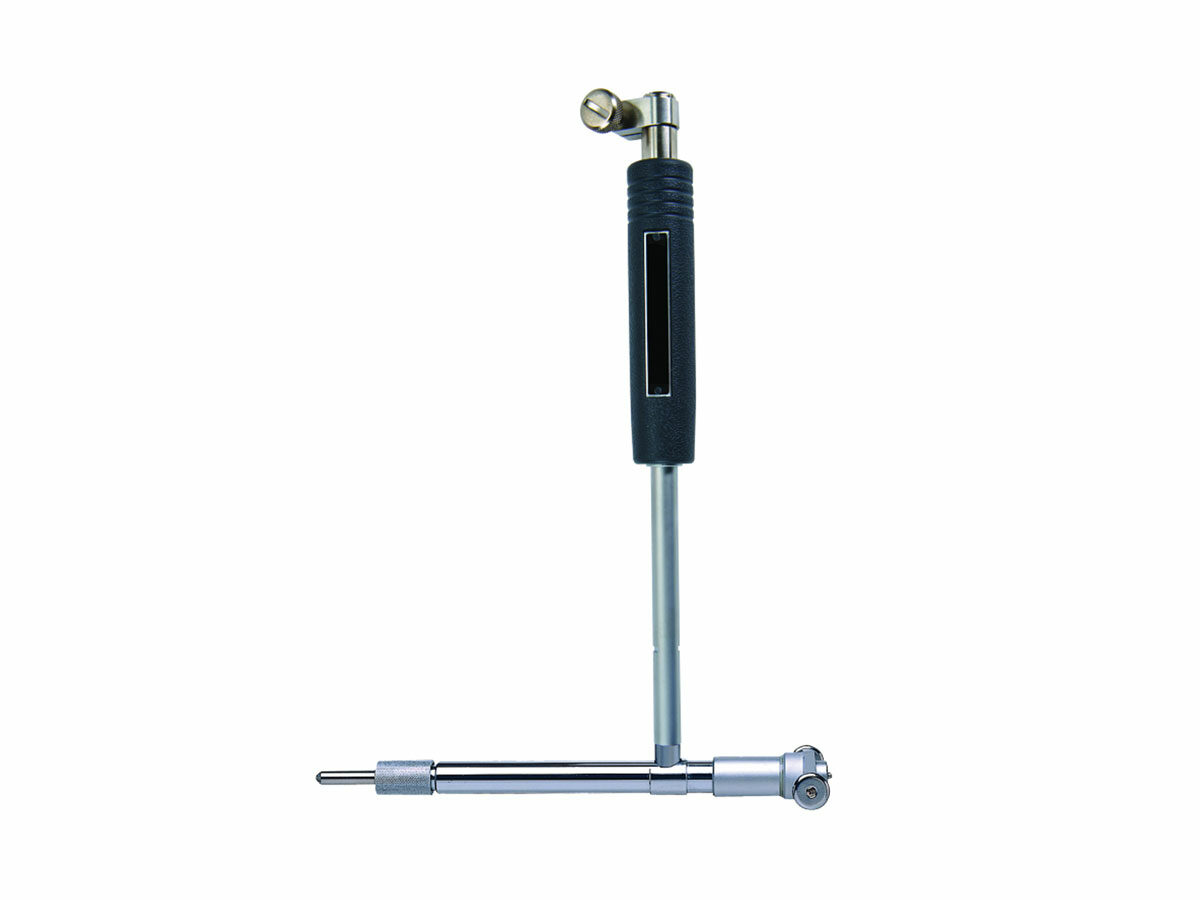

| 511-736 | - | 10-16" | 5 (3" Sub Anvil) | 7 |
