The Mitutoyo standard type bore gage three-piece sets feature interchangeable anvils and provide an inside dimension measuring range of 18-150mm /.7-6″ with accuracy to 2µ/.00008″.
Series 511
Bore Gage-Standard-8mm (3 pc set)
Features & Benefits

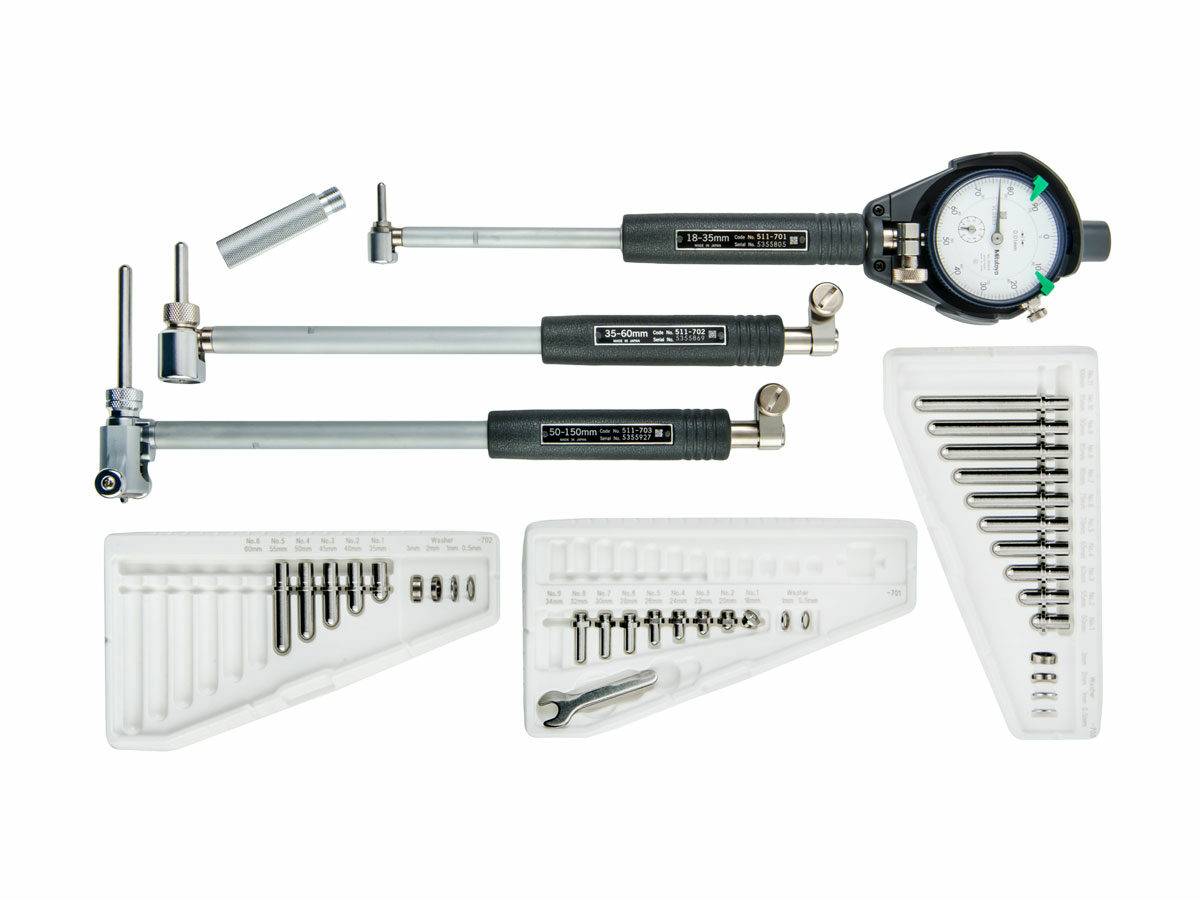

The Mitutoyo standard type bore gage set includes 26 interchangeable anvils, 10 spacers and 3 stems to measure a wide range of bore diameters with one Dial Indicator. A pendulum guide structure improves sliding the gage for measurements while a two-point contact system detects geometry anomalies such as ovalness and taper.
- Available in Metric or Inch sets
- Metric sets have a graduation option of 0.01mm and 0.001mm
- Inch sets have a graduation option of .0005″ and .0001″
- Optional extension rods are available to measuring deep hole with accuracy
- Large, newly designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
- Dial indicators are fully protected by a rugged cover
- Gage stem diameter is 8mm / .375″
- Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
- Supplied in a fitted plastic case
SERIES 511 Technical Data
| Technology: | Mechanical |
|---|---|
| Contact Point: | Carbide Tipped |
| Units: | Metric |
| Range: | 18 - 150mm |
| Accuracy: | +/-2µm |
| Repeatability: | 0.5µm |
| Adjacent Error: | 1µm |
| Stem Diameter: | 8mm |
| Number of anvils: | 26 (50mm Sub Anvil) |
| Number of spacers: | 10 |
| With Dial Gage Protective Cover (21DZA000): | Yes |
Product List
| Order No.: | Product Image: | Graduation: | Dial Gage: |
|---|---|---|---|
| 511-921-20 | - | 0.01mm | 2046AB |
| 511-922-20 | - | 0.001mm | 2109AB-10 |
| 511-931-20 | - | - | 2922A |
| 511-932-20 | - | - | 2923A-10 |
