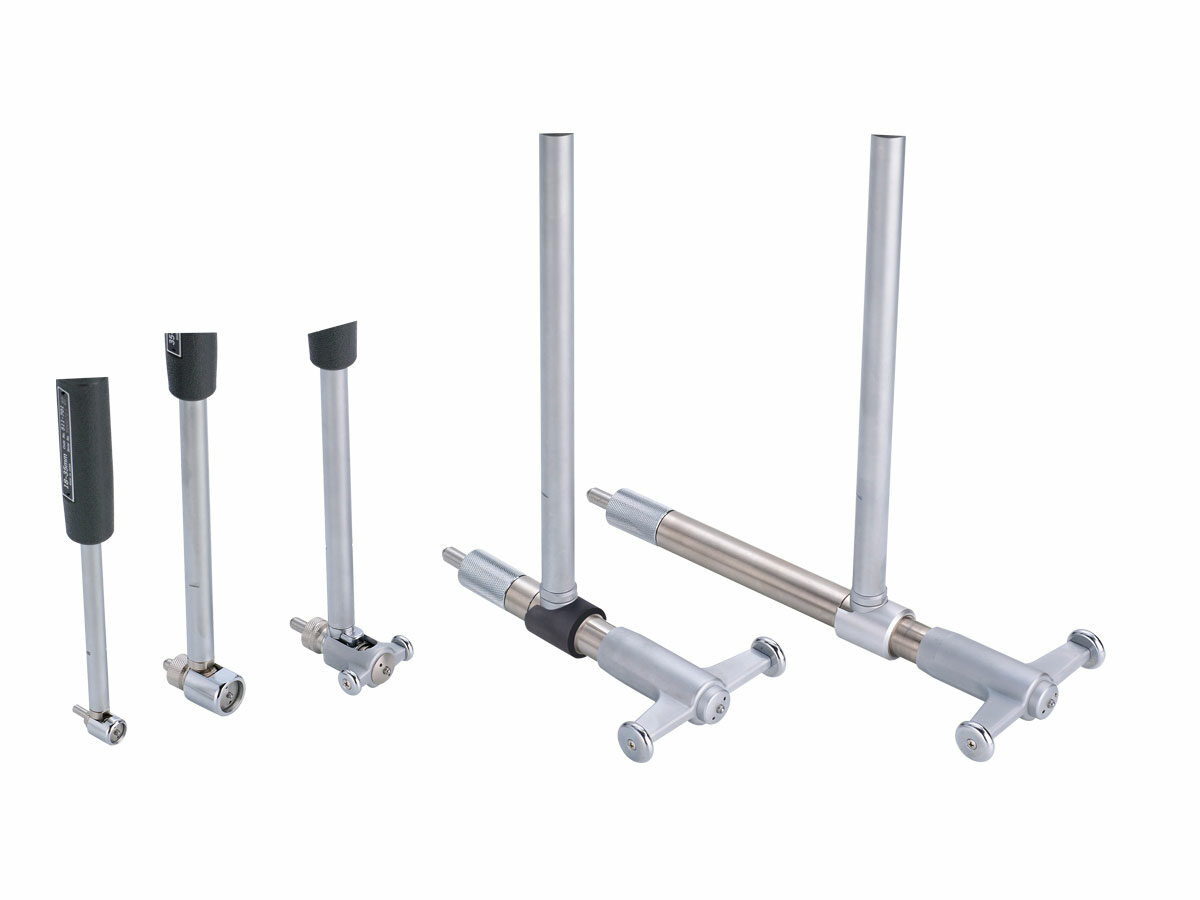

The Mitutoyo standard type bore gages feature interchangeable anvils and spacers to take highly accurate diameter measurements of a wide range of bore hole sizes. Models are available with or without a Mitutoyo Dial Indicator.
Features & Benefits
The Mitutoyo standard type bore gage is available in various ranges (metric and inch) to measure inside bore diameters with accuracy to 2ยต/.00008″. The bore gage comes with interchangeable anvils to measure various bore diameters with the same gage. A pendulum guide structure improves sliding the gage for measurements while a two-point contact system detects geometry anomalies such as ovalness and taper.
- Available with or without a Mitutoyo Dial Indicator
- Available in Metric or Inch models
- Optional extension rods are available to measuring deep hole with accuracy
- Large, newly designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
- Models with dial indicators are fully protected by a rugged cover
- Gage stem diameter is 8mm / .375″
- Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
- Supplied in a fitted plastic case
SERIES 511 Technical Data
| Technology: | Mechanical |
|---|---|
| Units: | Metric |
| Contact Point: | Carbide Tipped |
| Stem Diameter: | 8mm |
| With Dial Gage Protective Cover (21DZA000): | No |
Product List
| Order No.: | Product Image: | Range: | Number of anvils: | Number of spacers: |
|---|---|---|---|---|
| 511-701 | - | 18 - 35mm | 9 | 2 |
| 511-702 | - | 35 - 60mm | 6 | 4 |
| 511-703 | - | 50 - 150mm | 11 (50mm Sub Anvil) | 4 |
| 511-704 | - | 100 - 160mm | 13 | 4 |
| 511-705 | - | 160 - 250mm | 6 | 7 |
| 511-706 | - | 250 - 400mm | 5 (75mm Sub Anvil) | 7 |
