The Mitutoyo small hole bore gages feature interchangeable anvils to take highly accurate diameter measurements of bore holes. Models are available with or without a Mitutoyo Dial Indicator.
Features & Benefits
The Mitutoyo direct measuring bore gage for small holes is available in two different ranges (metric and inch) to measure inside bore diameters with accuracy to +/-0.005mm. The bore gage comes with nine interchangeable anvils to measure several different bore diameters with the same gage. A two-point contact system detects geometry anomalies such as ovalness and taper.
- Available with or without a Mitutoyo Dial Indicator
- Available in Metric or Inch models

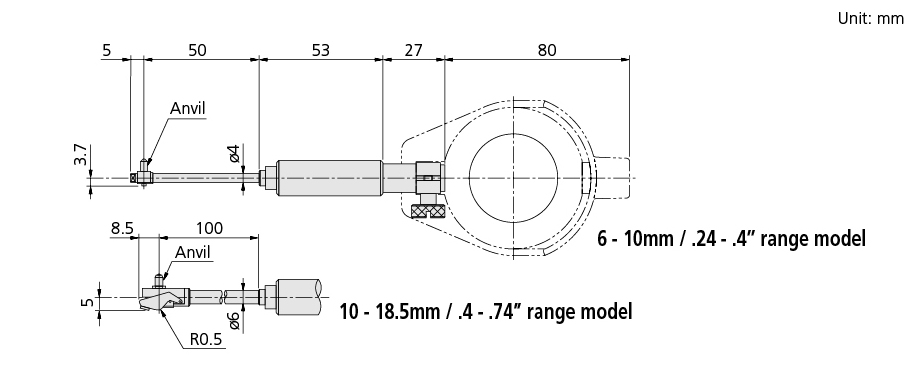

- Metric models have ranges of 6-10mm and 10-18.5mm
- Inch models have ranges of .24-.4″ and .4-.74″
- Large, newly designed grips are easier to hold and reduces heat transfer from the operator for better accuracy
- Models with dial indicators are fully protected by a rugged cover
- Gage stem diameter is 8mm / .375″
- Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
- Includes 9 anvils and 1 spacer
SERIES 511 Technical Data
| Technology: | Mechanical |
|---|---|
| Number of anvils: | 9 |
| Accessories: | Accessories |
Product List
| Order No.: | Product Image: | Units: | Range: | Graduation: | Accuracy: | Repeatability: | Dial Gage: | Stem Diameter: | Number of spacers: | With Dial Gage Protective Cover (21DZA000): |
|---|---|---|---|---|---|---|---|---|---|---|
| 511-204-20 | - | Metric | 10 - 18.5mm | 0.01mm | +/-5µm | 2µm | 2046AB | 8mm | 1 | Yes |

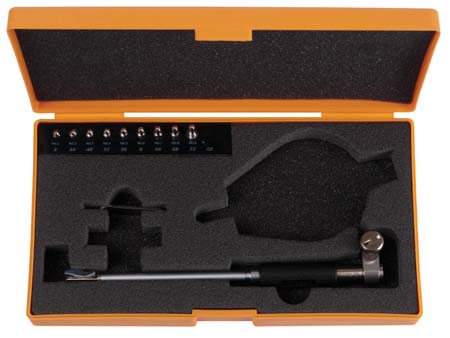

| 511-205 |  |
Inch | 0.4-0.74" | - | - | - | - | 0.375" | 1 | No |
| 511-206-20 | - | Inch | 0.4-0.74" | 0.0001" | 0.0002" | 0.00008" | 2923AB-10 | 0.375" | 1 | Yes |
| 511-207-20 | - | Inch | 0.4-0.74" | 0.0005" | 0.0002" | 0.00008" | 2922AB | 0.375" | 1 | Yes |
| 511-209 | - | Metric | 6 - 10mm | - | - | - | - | 8mm | - | No |

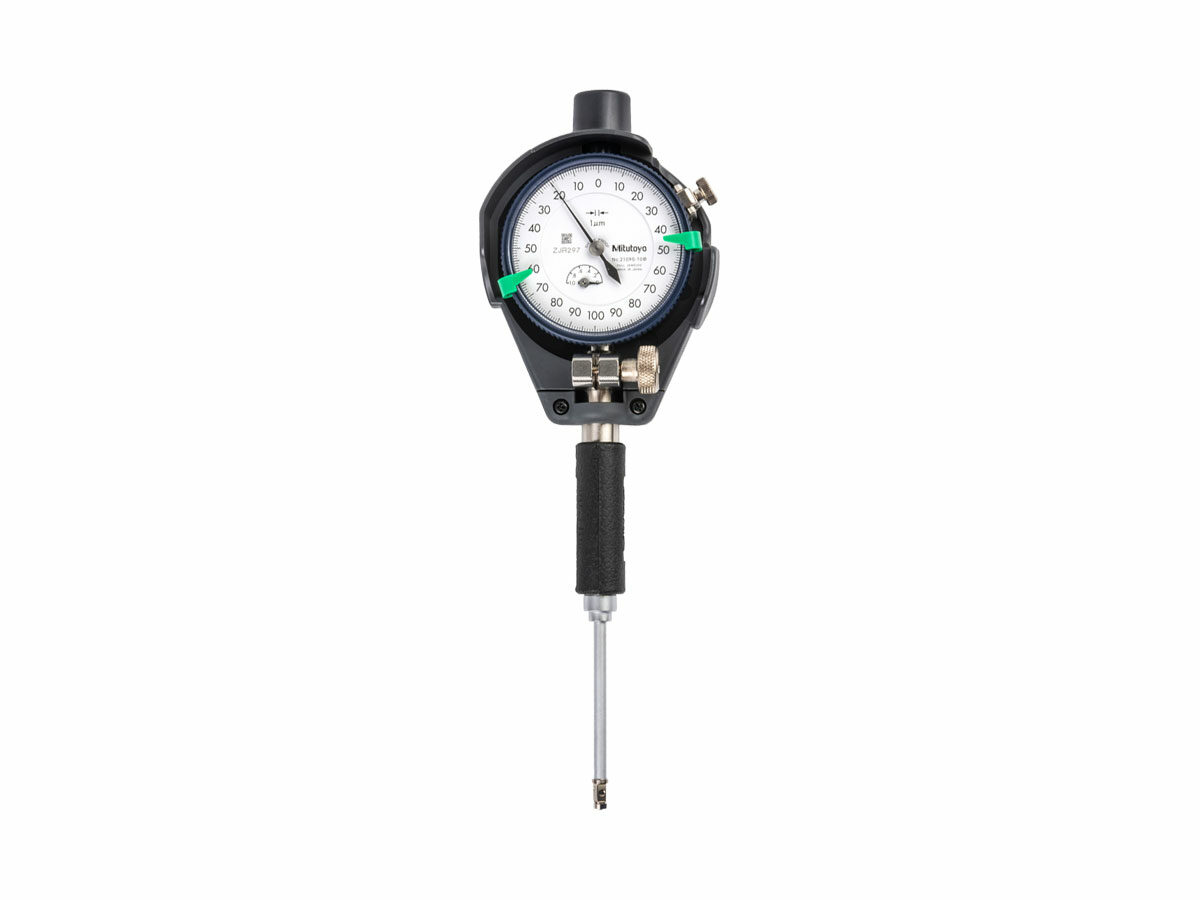

| 511-210-20 | - | Metric | 6 - 10mm | 0.001mm | +/-5µm | 2µm | 2109AB-10 | 8mm | - | Yes |
| 511-211-20 | - | Metric | 6 - 10mm | 0.01mm | +/-5µm | 2µm | 2046AB | 8mm | - | Yes |
| 511-212-20 | - | Inch | 0.24-0.4" | 0.0001" | 0.0002" | 0.00008" | 2923AB-10 | 0.375" | - | Yes |
| 511-213-20 | - | Inch | 0.24-0.4" | 0.0005" | 0.0002" | 0.00008" | 2922AB | 0.375" | - | Yes |
| 511-214 |  |

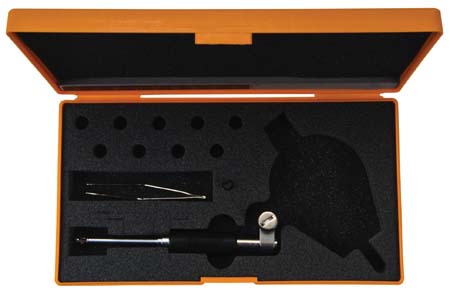

Inch | 0.24-0.4" | - | - | - | - | 0.375" | 1 | No |
| 511-203-20 | - | - | - | - | - | - | - | - | - | - |

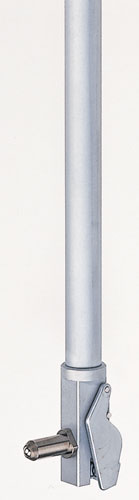

| 511-201 |  |
- | - | - | - | - | - | - | - | - |
