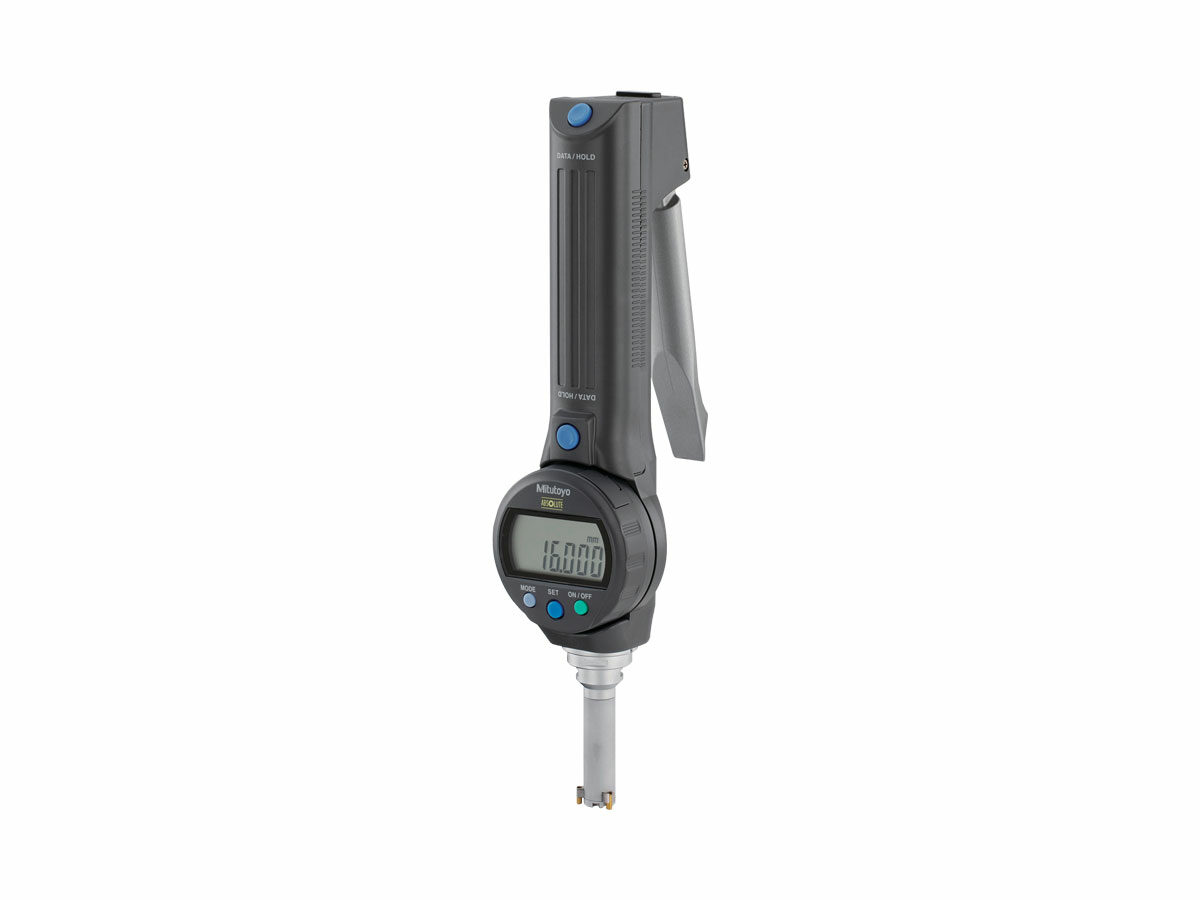

The Mitutoyo Borematic ABS Digimatic snap-open bore gage offers accurate bore measurements quicker and easier than ever before. Measurements are displayed on a large LCD readout that rotates 330° for easy reading in any instrument orientation.
Features & Benefits
The Mitutoyo Borematic snap-on bore gage features an activation handle with a precision-balanced spring that smoothly retracts the anvils when pressed. Titanium Nitride (TiN) coated measuring contact points provide excellent durability and impact resistance which allows the instrument to measure to the bottom of a blind hole. With the ABSOLUTE encoder, once the origin point is set with the ORIGIN button, the Borematic retains the setting for the entire battery life. Repeated origin setting (presetting) is no longer necessary.
- Available in Metric and Metric/Inch models
- Optional extension rod allows for measuring deep holes
- Optional setting rings for zero point adjustment are available
- Contact points are constructed of TiN for impact resistance and better durability
- Design allows for measurements closer to the bottom of blind bore holes
- SPC output function offers quick and easy data management in real time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Elimination of overspeed errors provides a higher measurement reliability and repeatability
- Functions include Zero/ABS Setting, GO/NO-GO judgment, power On/Off, and inch/mm conversion (on inch/metric models only)
- Supplied in fitted wooden case
SERIES 568 Technical Data
| Technology: | Digimatic |
|---|---|
| Measuring Method: | Three-point method |
| Display: | LCD |
| Battery: | SR44 (1 pc.) 938882 |
| Battery life: | Approx. 5,000 hours under normal use |
| SPC Output: | Yes |
| Accessories: | Accessories |
Product List
| Order No.: | Product Image: | Units: | Range: | Resolution: | Accuracy: | Contact Point: | Mass: | Extension Rod (Optional): |
|---|---|---|---|---|---|---|---|---|
| 568-361 | - | Metric | 6 - 8mm | 0.001mm | ±5µm | Carbide | 480g | 952322 |
| 568-362 | - | Metric | 8 - 10mm | 0.001mm | ±5µm | Carbide | 485g | 952322 |
| 568-363 | - | Metric | 10 - 12mm | 0.001mm | ±5µm | Carbide | 485g | 952322 |
| 568-364 | - | Metric | 12 - 16mm | 0.001mm | ±5µm | TiN coating | 475g | 952621 |
| 568-365 | - | Metric | 16 - 20mm | 0.001mm | ±5µm | TiN coating | 480g | 952621 |
| 568-366 | - | Metric | 20 - 25mm | 0.001mm | ±6µm | TiN coating | 540g | 952622 |
| 568-367 | - | Metric | 25 - 30mm | 0.001mm | ±6µm | TiN coating | 555g | 952622 |
| 568-368 | - | Metric | 30 - 40mm | 0.001mm | ±6µm | TiN coating | 565g | 952622 |
| 568-369 | - | Metric | 40 - 50mm | 0.001mm | ±6µm | TiN coating | 610g | 952622 |
| 568-370 | - | Metric | 50 - 63mm | 0.001mm | ±6µm | TiN coating | 730g | 952623 |
| 568-371 | - | Metric | 62 - 75mm | 0.001mm | ±6µm | TiN coating | 740g | 952623 |
| 568-372 | - | Metric | 75 - 88mm | 0.001mm | ±6µm | TiN coating | 790g | 952623 |
| 568-373 | - | Metric | 87 - 100mm | 0.001mm | ±6µm | TiN coating | 800g | 952623 |
| 568-374 | - | Metric | 100 - 113mm | 0.001mm | ±6µm | TiN coating | 900g | 952623 |
| 568-375 | - | Metric | 112 - 125mm | 0.001mm | ±6µm | TiN coating | 910g | 952623 |
| 568-461 | - | Metric, Inch | 6 - 8mm / 0.275-0.35" | 0.001mm / 0.00005" | ±5µm / ±0.00025" | Carbide | 480g | 952322 |
| 568-462 | - | Metric, Inch | 8 - 10mm / 0.35-0.425" | 0.001mm / 0.00005" | ±5µm / ±0.00025" | Carbide | 485g | 952322 |
| 568-463 | - | Metric, Inch | 10 - 12mm / 0.425-0.5" | 0.001mm / 0.00005" | ±5µm / ±0.00025" | Carbide | 485g | 952322 |
| 568-464 | - | Metric, Inch | 12 - 16mm / 0.5-0.65" | 0.001mm / 0.00005" | ±5µm / ±0.00025" | TiN coating | 475g | 952621 |
| 568-465 | - | Metric, Inch | 16 - 20mm / 0.65-0.8" | 0.001mm / 0.00005" | ±5µm / ±0.00025" | TiN coating | 480g | 952621 |
| 568-466 | - | Metric, Inch | 20 - 25mm / 0.8-1" | 0.001mm / 0.00005" | ±6µm / ±0.0003" | TiN coating | 540g | 952622 |
| 568-467 | - | Metric, Inch | 25 - 30mm / 1-1.2" | 0.001mm / 0.00005" | ±6µm / ±0.0003" | TiN coating | 555g | 952622 |
| 568-468 | - | Metric, Inch | 30 - 40mm / 1.2-1.6" | 0.001mm / 0.00005" | ±6µm / ±0.0003" | TiN coating | 565g | 952622 |
| 568-469 | - | Metric, Inch | 40 - 50mm / 1.6-2" | 0.001mm / 0.00005" | ±6µm / ±0.0003" | TiN coating | 610g | 952622 |
| 568-470 | - | Metric, Inch | 50 - 63mm / 2-2.5" | 0.001mm / 0.00005" | ±6µm / ±0.0003" | TiN coating | 730g | 952623 |
| 568-471 | - | Metric, Inch | 62 - 75mm / 2.5-3" | 0.001mm / 0.00005" | ±6µm / ±0.0003" | TiN coating | 740g | 952623 |
| 568-472 | - | Metric, Inch | 75 - 88mm / 3-3.5" | 0.001mm / 0.00005" | ±6µm / ±0.0003" | TiN coating | 790g | 952623 |
| 568-473 | - | Metric, Inch | 87 - 100mm / 3.5-4" | 0.001mm / 0.00005" | ±6µm / ±0.0003" | TiN coating | 800g | 952623 |
| 568-474 | - | Metric, Inch | 100 - 113mm / 4-4.5" | 0.001mm / 0.00005" | ±6µm / ±0.0003" | TiN coating | 900g | 952623 |
| 568-475 | - | Metric, Inch | 112 - 125mm / 4.5-5" | 0.001mm / 0.00005" | ±6µm / ±0.0003" | TiN coating | 910g | 952623 |
