The Mitutoyo automatic gage block comparator is an easy-to-operate dual-head gage block inspecting system that automatically compares workpieces to a standard gage block.
Series 565
Automatic Gage Block Comparator
Features & Benefits

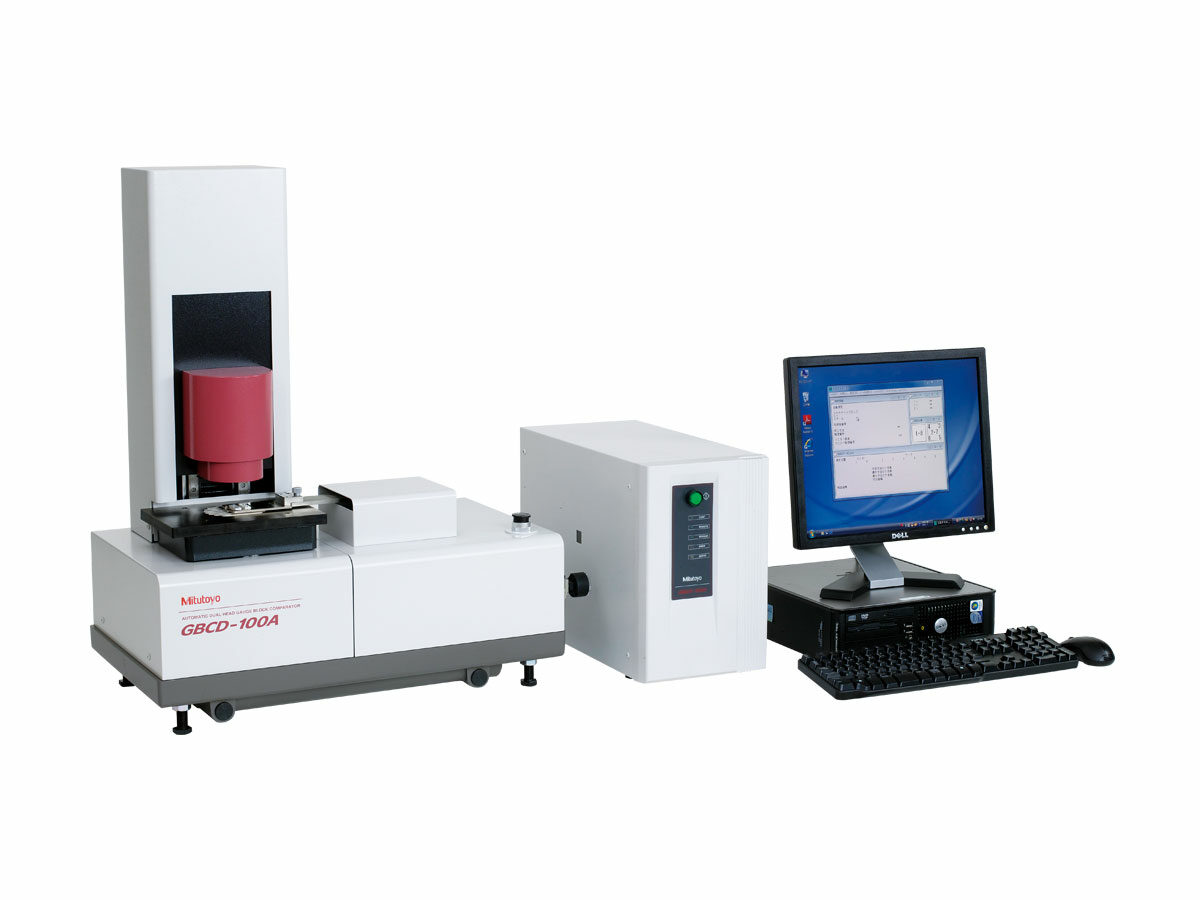

The Mitutoyo automatic gage block comparator measures accuracies such as central length, maximum length, minimum length and parallelism by comparing a workpiece to a standard gage block. The GBCD-100A gage block comparator uses dual gage heads for quick dimensional comparisons that are highly accurate and uses the GBPAK-A software to output results to a PC.
- Available in Inch/Metric
- Range: 0.5mm/.02”-100mm/4”
- Measuring unit: differential head
- SPC output function allows for quick and easy data management in real time with optional data cable
- Manual comparator GBCD-250A is also available
Product List
| Order No.: | Product Image: | Range: | Resolution: | Accuracy: | Measuring Unit: | Measuring Force of Upper Gage Head: | Measuring Force of Lower Gage Head: | Air Requirement: | Temperature Operation: | Operating Humidity Condition: | Main Unit Dimensions: | Electronic Unit Dimensions: | Main Unit Mass: | Electronic Unit Mass: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 565-160A | - | .02 - 4" / 0.5 - 100mm | .000001" / 0.00001mm | ±0.03+0.3L/1000µm | Differential type Mu-Checker | 1N | 0.6N | 400kPa | 20 +/-1° C | ±15% RH to 58% RH | 710 x 366 x 783mm | 160 x 410 x 382mm | 120kg | 14kg | - |
