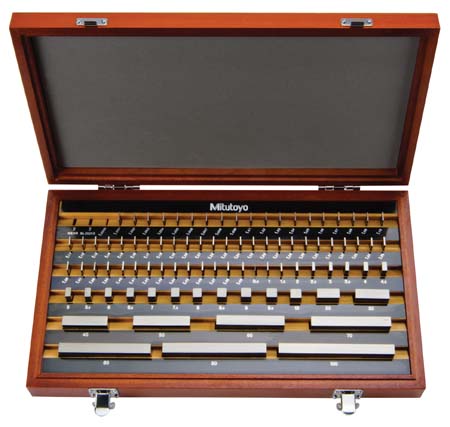

The Mitutoyo metric rectangular gage block set is a complete set of 1mm rectangular gage blocks to provide exceptional accuracy for vital quality control in the manufacturing of parts.
Series 516
Metric Rectangular Gage Block Set – 1mm Base
Features & Benefits
The Mitutoyo Metric Rectangular 1mm Base Gage Block Sets are available in different grades, sizes and steps, offering exceptional precision and stability for calibration and manufacturing traceability. Mitutoyo’s innovative lapping technique makes our gage blocks some of the most accurate and trusted instruments in the world, featuring exceptional flatness and ideal surface roughness. The Mitutoyo steel gage blocks are constructed of high-carbon, high-chrome steel while our CERA gage blocks are made of ceramic materials with superior surface qualities and corrosion resistance.
- Available in steel, CERA and steel/CERA combination block sets
- Specific, repeated heat treatment of steel blocks reduce deterioration change over time
- CERA blocks are free from dimensional change over time; have 10 times the abrasion resistance of steel gage blocks
- Advanced lapping techniques achieve the best flatness, surface roughness needed for gage blocks
- Black characters on gage blocks are inscribed by laser and clearly visible
- Provided with Inspection Certificate
- Supplied in a solid wooden case
SERIES 516 Technical Data
| Units: | Metric |
|---|---|
| Shape: | Rectangular |
| Provided with Inspection Certificate: | Yes |
Product List
| Order No.: | Product Image: | Number of blocks per set: | Material: | Grade: | Size: | Step: | Qty: |
|---|---|---|---|---|---|---|---|
| 516-337-26 | - | 112 | CERA | 00 | 1.01 - 1.49 | 0.001 | 9 |
| 516-338-26 | - | 112 | CERA | 0 | .5 - 24.5 | 0.01 | 49 |
| 516-339-26 | - | 112 | CERA | AS-1 | 25 - 100 | 0.5 | 49 |
| 516-340-26 | - | 112 | CERA | AS-2 | 1.001 - 1.009 | 25 | 4 |
| 516-341-26 | - | 103 | CERA | 00 | 1.01 - 1.49 | 0.01 | 49 |
| 516-342-26 | - | 103 | CERA | 0 | .5 - 24.5 | 0.5 | 49 |
| 516-343-26 | - | 103 | CERA | AS-1 | 25 - 100 | 25 | 4 |
| 516-344-26 | - | 103 | CERA | AS-2 | - | - | - |
| 516-345-26 | - | 87 | CERA | 00 | 1.01 - 1.49 | 0.01 | 49 |
| 516-346-26 | - | 87 | CERA | 0 | .5 - 9..5 | 0.5 | 19 |
| 516-347-26 | - | 87 | CERA | AS-1 | 10 - 100 | 10 | 10 |
| 516-348-26 | - | 87 | CERA | AS-2 | - | - | - |
| 516-353-26 | - | 56 | CERA | 00 | 1.001 - 1.009 | 0.001 | 9 |
| 516-354-26 | - | 56 | CERA | 0 | 1.01 - 1.09 | 0.01 | 9 |
| 516-355-26 | - | 56 | CERA | AS-1 | 1.1 - 1.9 | 0.1 | 9 |
| 516-356-26 | - | 56 | CERA | AS-2 | 1 - 24 | 1 | 24 |
| 516-357-26 | - | 47 | CERA | 00 | 1.01 - 1.09 | 0.01 | 9 |
| 516-358-26 | - | 47 | CERA | 0 | 1.1 - 1.9 | 0.1 | 9 |
| 516-359-26 | - | 47 | CERA | AS-1 | 1 - 24 | 1 | 24 |
| 516-360-26 | - | 47 | CERA | AS-2 | 25 - 100 | 25 | 4 |
| 516-531-56 | - | 112 | Steel | K | 1.0005 | - | 1 |
| 516-533-56 | - | 103 | Steel | K | 1.005 | - | 1 |
| 516-535-56 | - | 87 | Steel | K | 1.001 - 1.009 | 0.001 | 9 |
| 516-536-56 | - | 56 | Steel | K | 0.5 | - | 1 |
| 516-537-56 | - | 47 | Steel | K | 1.005 | - | 1 |
| 516-541-56 | - | 112 | CERA | K | 1.001 - 1.009 | - | 1 |
| 516-542-56 | - | 103 | CERA | K | 1.005 | - | 1 |
| 516-543-56 | - | 87 | CERA | K | 1.001 - 1.009 | 0.001 | 9 |
| 516-544-56 | - | 56 | CERA | K | 0.5 | - | 1 |
| 516-545-56 | - | 47 | CERA | K | 1.005 | - | 1 |
| 516-937-26 | - | 112 | Steel | 00 | 1.001 - 1.009 | 0.001 | 9 |
| 516-938-26 | - | 112 | Steel | 0 | 1.01 - 1.49 | 0.01 | 49 |
| 516-939-26 | - | 112 | Steel | AS-1 | .5 - 24.5 | 0.5 | 49 |
| 516-940-26 | - | 112 | Steel | AS-2 | 25 - 100 | 25 | 4 |
| 516-941-26 | - | 103 | Steel | 00 | 1.01 - 1.49 | 0.01 | 49 |
| 516-942-26 | - | 103 | Steel | 0 | .5 - 24.5 | 0.5 | 49 |
| 516-943-26 | - | 103 | Steel | AS-1 | 25 - 100 | 25 | 4 |
| 516-944-26 | - | 103 | Steel | AS-2 | - | - | - |
| 516-945-26 |  |
87 | Steel | 00 | 1.01 - 1.49 | 0.01 | 49 |
| 516-946-26 | - | 87 | Steel | 0 | .5 - 9..5 | 0.5 | 19 |
| 516-947-26 | - | 87 | Steel | AS-1 | 10 - 100 | 10 | 10 |
| 516-948-26 | - | 87 | Steel | AS-2 | - | - | - |
| 516-953-26 | - | 56 | Steel | 00 | 1.001 - 1.009 | 0.001 | 9 |
| 516-954-26 | - | 56 | Steel | 0 | 1.01 - 1.09 | 0.01 | 9 |
| 516-955-26 | - | 56 | Steel | AS-1 | 1.1 - 1.9 | 0.1 | 9 |
| 516-956-26 | - | 56 | Steel | AS-2 | 1 - 24 | 1 | 24 |
| 516-957-26 | - | 47 | Steel | 00 | 1.01 - 1.09 | 0.01 | 9 |
| 516-958-26 |  |
47 | Steel | 0 | 1.1 - 1.9 | 0.1 | 9 |
| 516-959-26 | - | 47 | Steel | AS-1 | 1 - 24 | 1 | 24 |
| 516-960-26 | - | 47 | Steel | AS-2 | 25 - 100 | 25 | 4 |
