The Mitutoyo screw thread pitch gages are ideal for checking thread angle cutting in the manufacturing of screws and tool angle cutting measurements.
Series 188
Pitch Gages
Features & Benefits

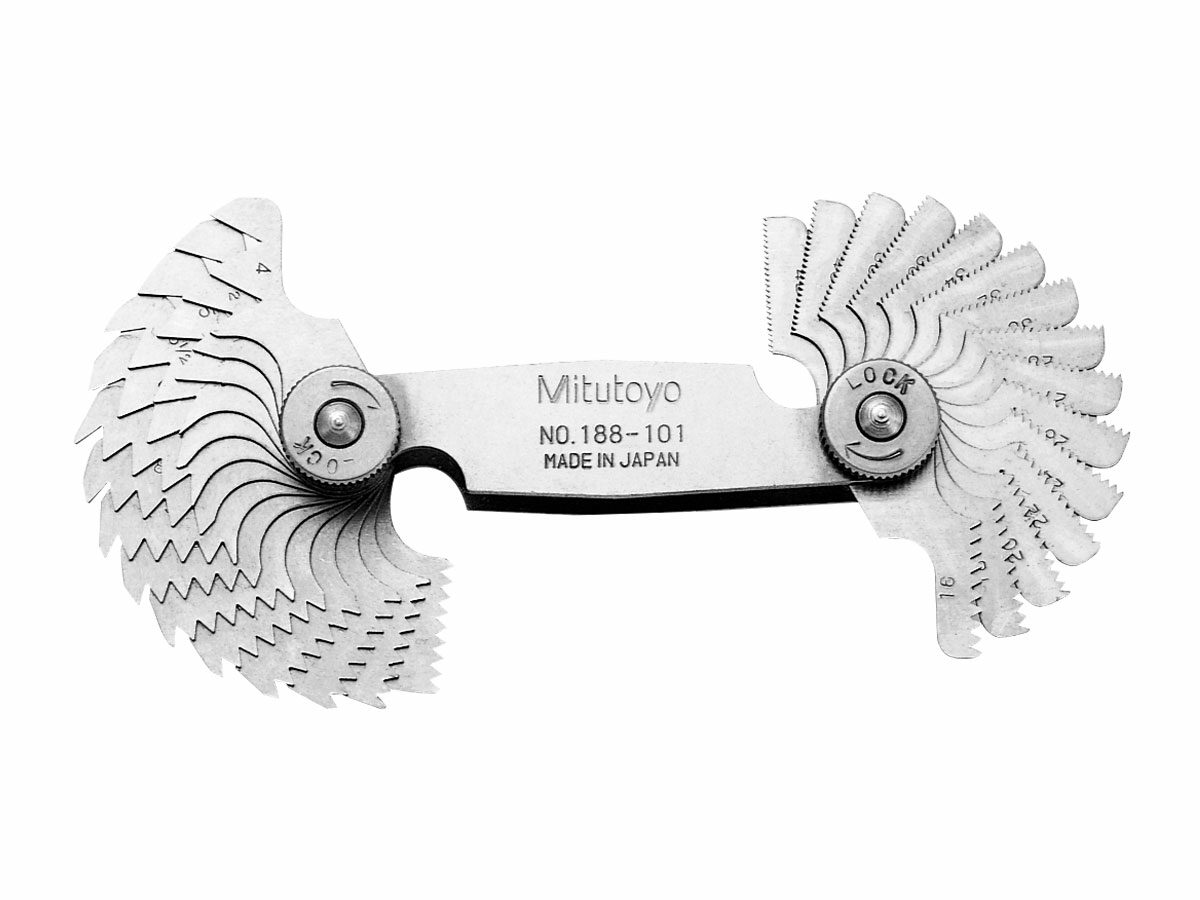

The Mitutoyo screw thread pitch gages are constructed of high-grade stainless steel for reliable and highly accurate thread pitch measurements. Each leaf has the pitch size stamped on it for fast and easy viewing. Locking clamps keep the gages in place while in use or in storage.
- Available in Metric, Unified and Whitworth screw pitches
- Each thread gage leaf is stamped with pitch size for easier reading
- Locking clamp allows for easier use, stable
Product List
| Order No.: | Product Image: | Units: | Range: | Number of Leaves: | Composition of Leaves: |
|---|---|---|---|---|---|
| 188-101 | - | Inch | 4 - 42 TPI | 30 leaves | 4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 111/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI |
| 188-102 |  |
Inch | 4 - 42 TPI | 28 leaves | 4, 41/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 34, 36, 40, 48, 60 TPI |
| 188-111 |  |
Inch | 4 - 42 TPI | 30 leaves | 4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 111/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI |
| 188-121 | - | Metric | 0.4 - 7mm | 18 leaves | 0.4, 0.5, 0.75, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm |
| 188-122 | - | Metric | 0.4 - 7mm | 21 leaves | 0.4, 0.5, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm |
| 188-130 | - | Metric | 0.35 - 6mm | 22 leaves | 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6mm |
| 188-151 | - | Inch/Metric | 0.4 - 7mm / 4 - 42 TPI | 51 leaves | - |
| 188-152 | - | Inch/Metric | 0.5 - 6mm / 4 - 56 TPI | 28 leaves | 4, 6, 8, 10, 11, 11-1/2, 12, 13, 16, 20, 28, 32, 40, 56 TPI and 0.50, 0.75, 1.00, 1.25, 1.50, 1.75, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00. 6.00 mm |
| 188-153 | - | Metric | 0.25 - 2.5mm | 28 leaves | 0.25, 0.30. 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 1.00, 1.10, 1.20, 1.25, 1.30, 1.40, 1.50, 1.60, 1.70, 1.75, 1.80, 1.90, 2.00. 2.50 mm |
| 950-253 | - | Inch | 4 - 84 TPI | 51 leaves | - |
