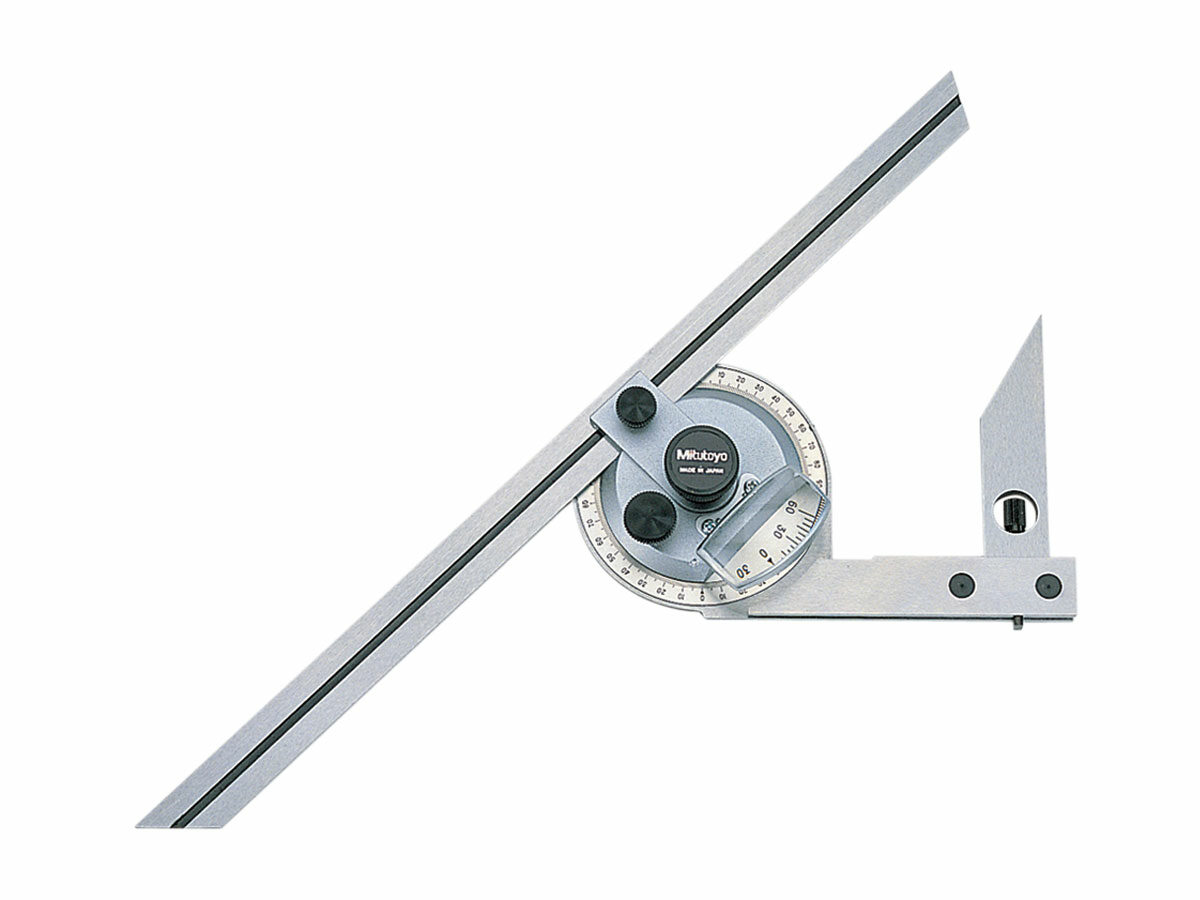

The Mitutoyo Universal Bevel Protractor is a high precision angle gage used for accurate angle measuring of machines, molds and jigs. Angles are shown on a dial scale with a built-in magnifying glass.
Features & Benefits

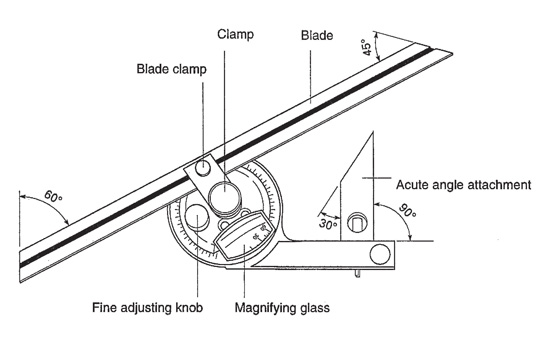

The Mitutoyo Universal Bevel Protractor features a blade with an easy-to-use locking clamp which shows precise angle measurements on a dial gage in 1° graduations. A Vernier scale enables fine measurements for better accuracy with a resolution to each 5 minutes. The protractor measures in clockwise and counterclockwise directions to quickly measure angles for repeatable angle cuts or workpiece positioning.
- Available with 6” or 12” blade
- Center knob locks blade position
- Measuring range of 3×90°
- Built-in dial magnifying glass makes angle readings easier
- Protractor can be attached to a Height Gage
- Body is constructed of stainless steel for durability and corrosion resistance
- Blade is removable
SERIES 187 Technical Data
| Optional Accessories: | 187-103, 187-104, 187-105, 950749, 950750 |
|---|
Product List
| Order No.: | Product Image: | Dial: | Accuracy: | Blade Size: | Diameter: |
|---|---|---|---|---|---|
| 187-904 |  |
1° | ± 5’ | 6" | 2.56” / 70mm |
| 187-906 |  |
1° | ± 5’ | 12" | 2.56” / 70mm |
