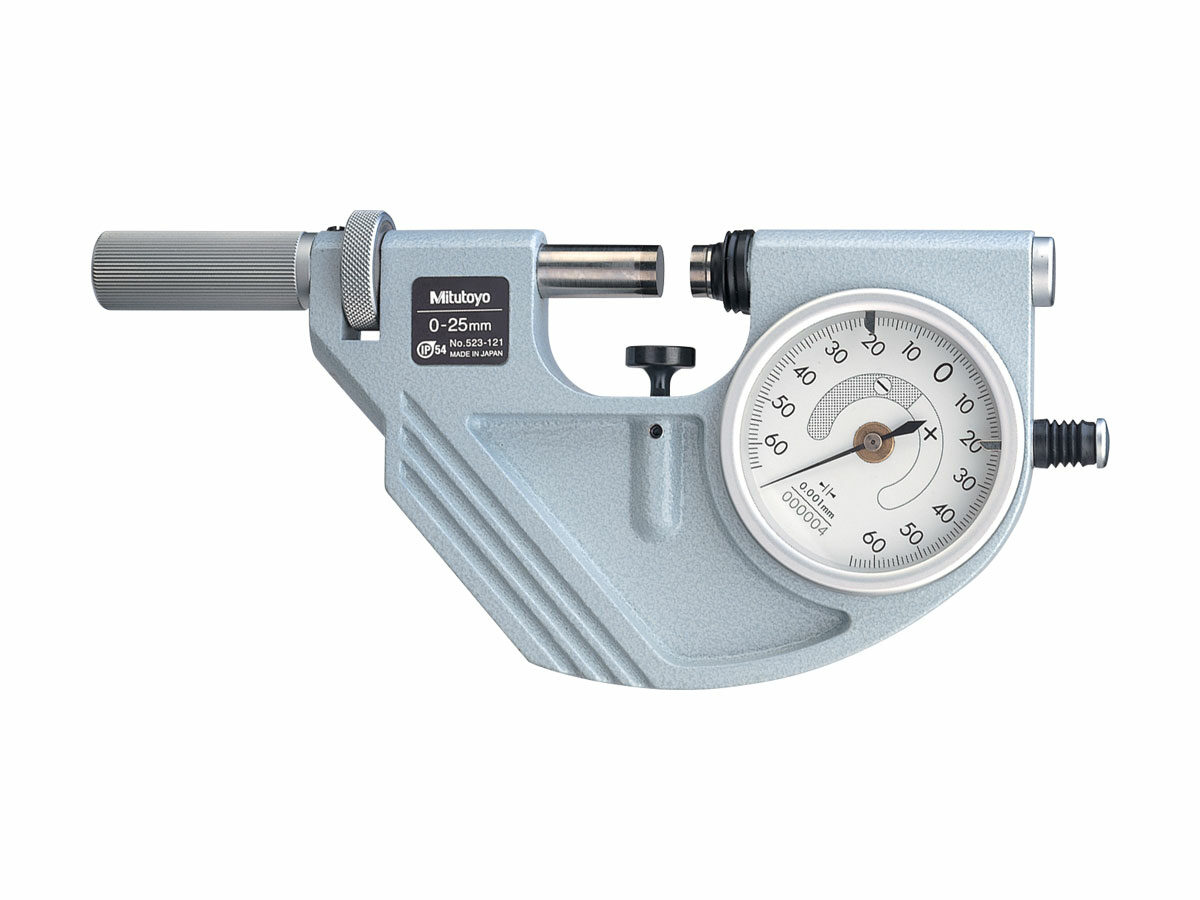

The Mitutoyo dial snap meter features a built-in dial indicator and retractable anvil for fast comparisons, GO/NG inspections for a multitude of applications.
Features & Benefits
The Mitutoyo dial snap meter and dial indicator are manufactured in our factory in Japan with the same durability and precision as our micrometers. The spindle, anvil and frame are constructed of hardened steel to resist flexing so results are more accurate. The anvil trigger has a balanced spring and operates easily with a button on the anvil side of the frame. The retractable anvil allows for faster workpiece throughput without sacrificing accuracy.
- Available in Metric and Inch models
- Dial indicator for GO/NO-GO tolerance inspection is highly accurate and easy to read
- Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
- Satin chrome finish on the thimble and sleeve resists rust and reduces glare
- Supplied in fitted plastic case
- IP54 protection resists debris, dust and water
SERIES 523 Technical Data
| Technology: | Mechanical |
|---|---|
| IP Rating: | IP54 |
| Measuring Force: | 5-10N |
| Measuring Faces: | Carbide tipped |
Product List
| Order No.: | Product Image: | Units: | Range: | Dial indication accuracy: | Graduation: | Mass: | Flatness: | Parallelism: | Dial reading: | Indicating Range: | Indication Repeatability: |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 523-121 |  |
Metric | 0-25mm | 1µm | 0.001mm | 710g | 0.3µm | 0.6µm or less | 0.001mm | ±0.06mm | 0.4µm |
| 523-122 | - | Metric | 25-50mm | 1µm | 0.001mm | 810g | 0.3µm | 0.6µm or less | 0.001mm | ±0.06mm | 0.4µm |
| 523-123 | - | Metric | 50-75mm | 1µm | 0.001mm | 920g | 0.3µm | 1µm or less | 0.001mm | ±0.06mm | 0.4µm |
| 523-124 | - | Metric | 75-100mm | 1µm | 0.001mm | 1050g | 0.3µm | 1µm or less | 0.001mm | ±0.06mm | 0.4µm |
| 523-131 |  |
Inch | 0-1" | 0.00005" | 0.00005" | 710g | - | 0.000024" or less | 0.00005" | ±0.0023" | 0.00002" |
| 523-132 | - | Inch | 1-2" | 0.00005" | 0.00005" | 810g | - | 0.000024" or less | 0.00005" | ±0.0023" | 0.00002" |
| 523-133 | - | Inch | 2-3" | 0.00005" | 0.00005" | 920g | - | 0.000040" or less | 0.00005" | ±0.0023" | 0.00002" |
| 523-134 | - | Inch | 3-4" | 0.00005" | 0.00005" | 1050g | - | 0.000040" or less | 0.00005" | ±0.0023" | 0.00002" |
