The Mitutoyo mechanical non-rotating spindle disc micrometer is designed to measure the root tangent length of spur gears and helical gears with high accuracy. Available in inch or metric units.
Features & Benefits

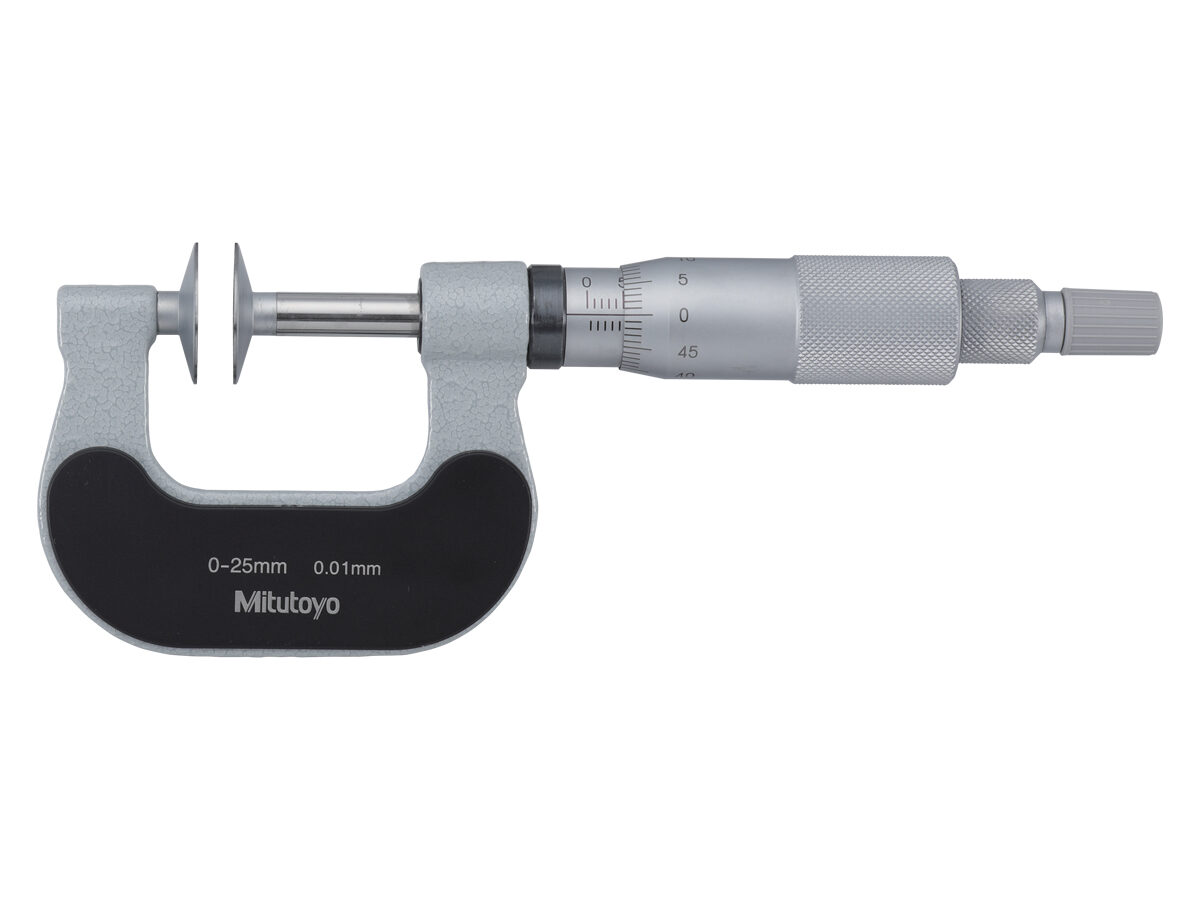

The Mitutoyo mechanical disc micrometer uses flat discs constructed of hardened steel in our own Japanese facilities to measure lengths of spur and helical gears. The non-rotating spindle prevents workpiece deformation and wear by reducing torque on parts being measured. The flatness and thinness of the discs allow for reliable measurements in tight spaces. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.
- Available in Metric and Inch models
- Ratchet mechanism provides an audible click to ensure measurement is performed at a constant force
- Knurled friction thimbles provide quick adjustments even when wearing gloves
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame has a baked enamel finish for durability and longer lifespan
- Supplied in fitted plastic case
SERIES 169 Technical Data
| Technology: | Mechanical |
|---|---|
| SPC Output: | No |
| Ratchet/Thimble: | Ratchet Stop |
| Measuring Force: | 3-8N |
Product List
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Disk Diameter: | Mass: | Graduation: | Flatness: | Parallelism: |
|---|---|---|---|---|---|---|---|---|---|
| 169-201 |  |
Metric | 0-25mm | ±4µm | 20 ømm | 230g | 0.01mm | 1µm | 4µm or less |
| 169-203 |  |
Inch | 0-1" | ±0.0002" | 0.787 øinch | 230g | 0.001" | - | 0.00020" or less |
| 169-204 |  |
Inch | 1-2" | ±0.0002" | 0.787 øinch | 280g | 0.001" | - | 0.00020" or less |
| 169-206 |  |
Inch | 2-3" | ±0.0003" | 0.787 øinch | 315g | 0.001" | - | 0.00030" or less |
| 169-208 |  |
Inch | 3-4" | ±0.0003" | 0.787 øinch | 400g | 0.001" | - | 0.00030" or less |
