The Mitutoyo gear tooth micrometers measures gear modules using precision with optional interchangeable anvil-spindle tips to measure different sizes and types of gears.
Features & Benefits
The Mitutoyo gear tooth micrometer series measures the over-pin diameter of gears. Precision carbide anvil and spindle ball-tipped measuring surfaces are interchangeable, with optional ball-tip faces allowing for measurement of various gear modules. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
- Interchangeable ball anvil-spindle tips for various gear modules (0.5-5.25) are optional
- Measuring surfaces are constructed of carbide to reduce wear
- Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
- Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
- Frame has a non-slip finish for better grip in shop environments
- Includes a standard bar except for 0-25mm and 0-1” models
- Supplied in fitted plastic case (models over 150mm have a wooden case)
SERIES 124 Technical Data
| Technology: | Mechanical |
|---|---|
| Units: | Metric |
| Spindle Feed Error: | 3µm |
| SPC Output: | No |
| Ratchet/Thimble: | Ratchet Stop |
| Graduation: | 0.01mm |
Product List
| Order No.: | Product Image: | Range: | Mass: |
|---|---|---|---|

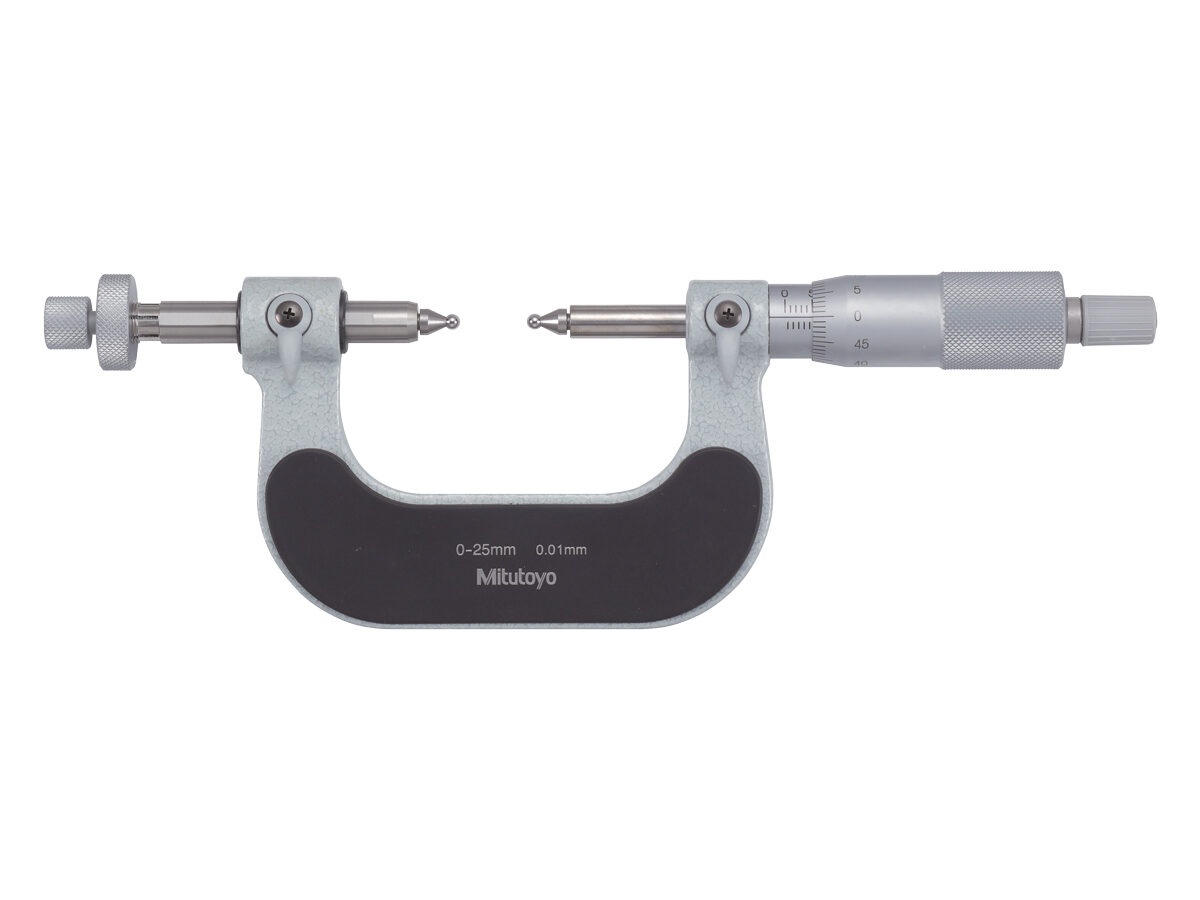

| 124-173 |  |
0-25mm | 295g |
| 124-174 | - | 25-50mm | 400g |
| 124-175 | - | 50-75mm | 460g |
| 124-176 | - | 75-100mm | 540g |
| 124-177 | - | 100-125mm | 640g |
| 124-178 | - | 125-150mm | 760g |
| 124-179 | - | 150-175mm | 900g |
| 124-180 | - | 175-200mm | 1060g |

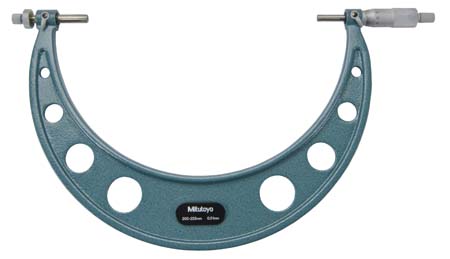

| 124-181 |  |
200-225mm | 1230g |
| 124-182 | - | 225-250mm | 1430g |
| 124-183 | - | 250-275mm | 1620g |
| 124-195 | - | 275-300mm | 2070g |
