The Mitutoyo outside micrometer features a ratchet stop function and interchangeable anvils for measuring a wide range of workpiece sizes and material types with precision. Available in inch measurements.
Series 104

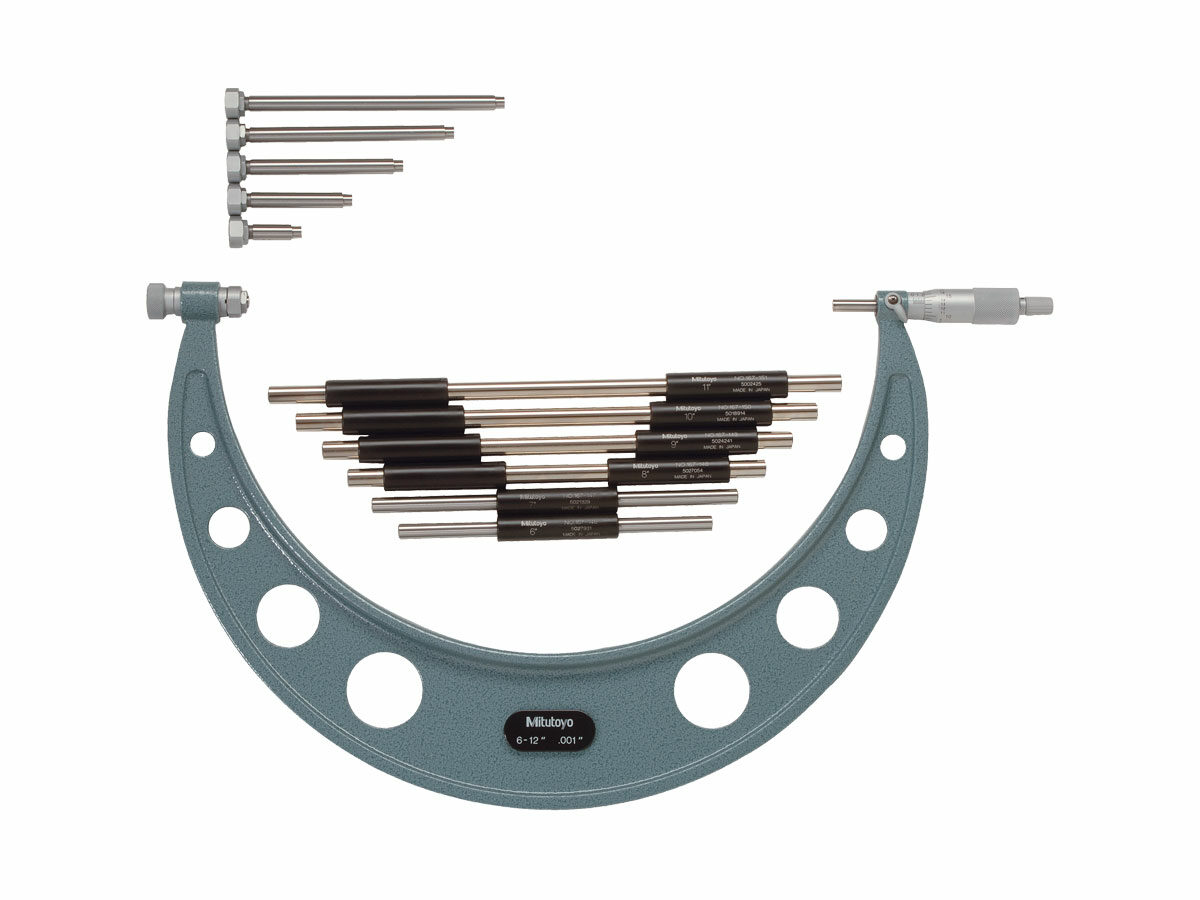

Outside Micrometer-Inch-Interchangeable Anvils
Features & Benefits
The Mitutoyo ratchet stop outside micrometer is ideal for measuring metal and non-metal workpieces by controlling the amount of force applied by the spindle. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Interchangeable anvils allow for measuring a wide range of workpiece sizes.
- Available in inch and inch/metric models
- Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
- Functions include Origin Set, Zero/ABS, Hold, Function Lock, Data Output, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Zero-setting standards bar for each range is included
- Scale is laser etched on thimble for quick and easy reading
- Carbide facing on the spindle resists wear to keep surfaces flatter with longer accuracy
- Speeder is always available for quick rotation of the spindle
- Supplied in a fitted wooden case
SERIES 104 Technical Data
| Technology: | Mechanical |
|---|---|
| Units: | Inch |
| SPC Output: | No |
| Ratchet/Thimble: | Ratchet Stop |
| Measuring Force: | 5-10N |
| Measuring Faces: | Carbide tipped (spindle only) |
Product List
| Order No.: | Product Image: | Range: | Accuracy: | Graduation: | Mass: | Flatness: | Parallelism: |
|---|---|---|---|---|---|---|---|

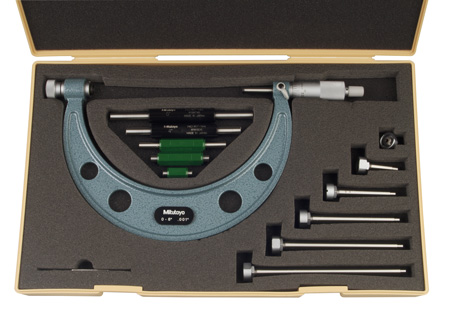

| 104-137 |  |
0-6" | ±0.0003" | 0.00100" | 1.35kg | - | 0.00016" or less |
| 104-138 |  |
6-12" | ±0.0004" | 0.00100" | 2.65kg | - | 0.00020" or less |
| 104-152 | - | 12-16" | ±0.00015" | 0.00100" | 3.31kg | - | 0.00024" or less |
| 104-153 | - | 16-20" | ±0.00015" | 0.00100" | 4.81kg | - | 0.00028" or less |
| 104-154 | - | 20-24" | ±0.00015" | 0.00100" | 6.35kg | - | 0.00032" or less |
| 104-155 | - | 24-28" | ±0.00015" | 0.00100" | 7.72kg | - | 0.00036" or less |
| 104-156 | - | 28-32" | ±0.00015" | 0.00100" | 9.08kg | - | 0.00040" or less |
| 104-157 | - | 32-36" | ±0.00015" | 0.00100" | 10.41kg | - | 0.00044" or less |
| 104-158 | - | 36-40" | ±0.00015" | 0.00100" | 11.78kg | - | 0.00048" or less |
| 104-165 |  |
0-2" | ±0.0001" | 0.00010" | 0.32kg | - | 0.00008" or less |
| 104-201 | - | 12-18" | ±0.00015" | 0.00100" | 4.69kg | - | 0.00026" or less |
| 104-202 | - | 18-24" | ±0.00015" | 0.00100" | 6.51kg | - | 0.00032" or less |
| 104-203 | - | 24-30" | ±0.00015" | 0.00100" | 9.95kg | - | 0.00038" or less |
| 104-204 | - | 30-36" | ±0.00015" | 0.00100" | 11.87kg | - | 0.00044" or less |
| 104-205 | - | 36-42" | ±0.00015" | 0.00100" | 13.68kg | - | 0.00050" or less |
