The Mitutoyo snap meters accept a variety of optional indicators, linear gages and LVDTs for fast, accurate outside dimension verification according to a preset dimension or tolerance.
Series 523

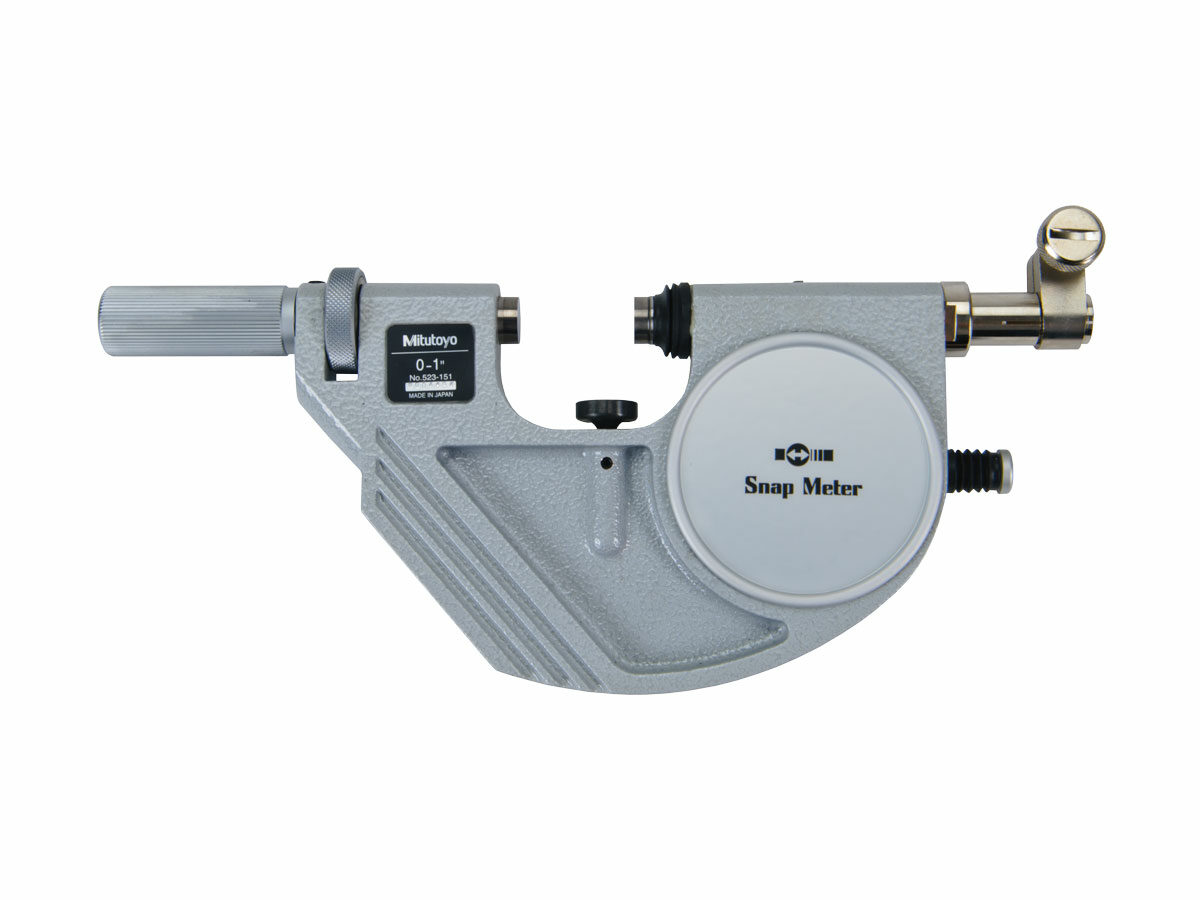

Snap Meter-Gage Stem Dia 3/8 inch
Features & Benefits
The Mitutoyo snap meter gage utilizes a hardened steel spindle and anvil with carbide faces for precise, highly reliable outside dimension measurements. Many different types of dial or digital indicators attach to the spindle, allowing for GO/NG measurements on a wide variety of applications. The anvil trigger has a balanced spring and operates easily with a button on the anvil side of the frame. The retractable anvil allows for faster workpiece throughput without sacrificing accuracy.
- Available in Metric or Inch models
- Inch gage stem diameter is 3/8”
- Dial or digital indicator is optional and sold separately
- Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
- Satin chrome finish on the thimble and sleeve resists rust and reduces glare
- Supplied in fitted plastic case
SERIES 523 Technical Data
| Technology: | Mechanical |
|---|---|
| Units: | Inch |
| Anvil movement: | 0.078" |
| Measuring Force: | 5-10N |
| Flatness: | - |
| Measuring Faces: | Carbide tipped |
| Stem Diameter: | 0.375" |
Product List
| Order No.: | Product Image: | Range: | Mass: | Parallelism: |
|---|---|---|---|---|

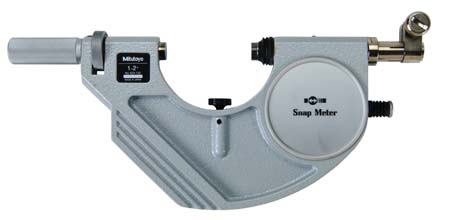

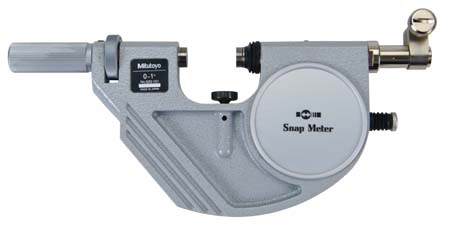

| 523-151 |  |
0-1" | 710g | 0.000024" or less |
| 523-152 |  |
1-2" | 810g | 0.000024" or less |
| 523-153 | - | 2-3" | 920g | 0.000040" or less |
| 523-154 |  |
3-4" | 1050g | 0.000040" or less |
