Series 111

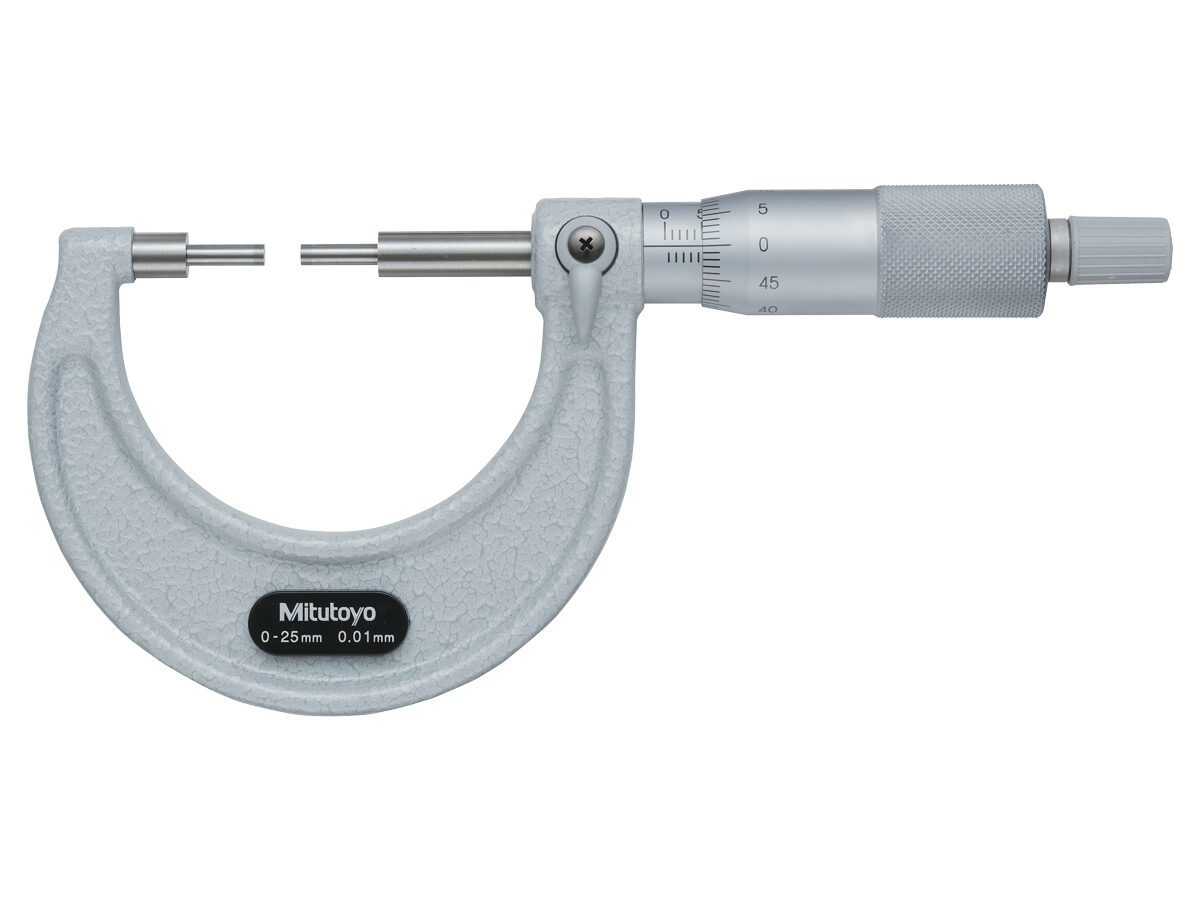

Spline Micrometer

The Mitutoyo mechanical spline micrometer features a reduced diameter anvil and spindle for measuring splined shafts, slots and keyways.

Request Demo | Support Request | Register Product

Jump down to: Features & Benefits | Technical Data | Product ListInquire

Features & Benefits

The Mitutoyo spline micrometer is ideal for measuring minor indents, slots, spline shafts and keyways on workpieces. The anvil and spindle each have reduced diameters to measure internal features with high accuracy. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.

  • Available in Metric and Inch/Metric models
  • Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
  • Ratchet-stop mechanism provides uniform pressure for precise, repeatable measurements
  • Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
  • Frame has a baked enamel finish to resist corrosion
  • Scale is laser etched on thimble for easier reading
  • Includes a standard bar except for 0-25mm models
  • Supplied in fitted plastic case
SERIES 111 Technical Data
Technology: Mechanical
Ratchet/Thimble: Rachet Stop
Measuring Force: 5-10N
Measuring Faces: Carbide tipped
Product List
Order No.: Product Image: Units: Range: Accuracy: Mass: Graduation: Flatness: Parallelism: Remarks:
111-115 Metric 0-25mm ±3µm 205g 0.01mm 0.3µm 2µm or less Type A
111-116 - Metric 25-50mm ±3µm 305g 0.01mm 0.3µm 2µm or less Type A
111-117 - Metric 50-75mm ±3µm 370g 0.01mm 0.3µm 2µm or less Type A
111-118 - Metric 75-100mm ±4µm 500g 0.01mm 0.3µm 2µm or less Type A
111-119 - Metric 100-125mm ±4µm 655g 0.01mm 0.3µm 2µm or less Type A
111-120 - Metric 125-150mm ±4µm 710g 0.01mm 0.3µm 3µm or less Type A
111-121 - Metric 150-175mm ±5µm 900g 0.01mm 0.3µm 3µm or less Type A

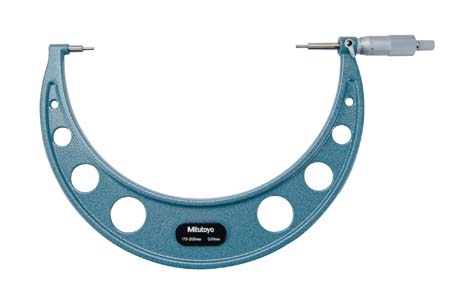

111-122 Metric 175-200mm ±5µm 1040g 0.01mm 0.3µm 4µm or less Type A
111-166 - Inch 0-1" - 205g .0001"" - 0.00008" or less Type A
111-215 - Metric 0-25mm ±3µm 205g 0.01mm 0.3µm 2µm or less Type B
