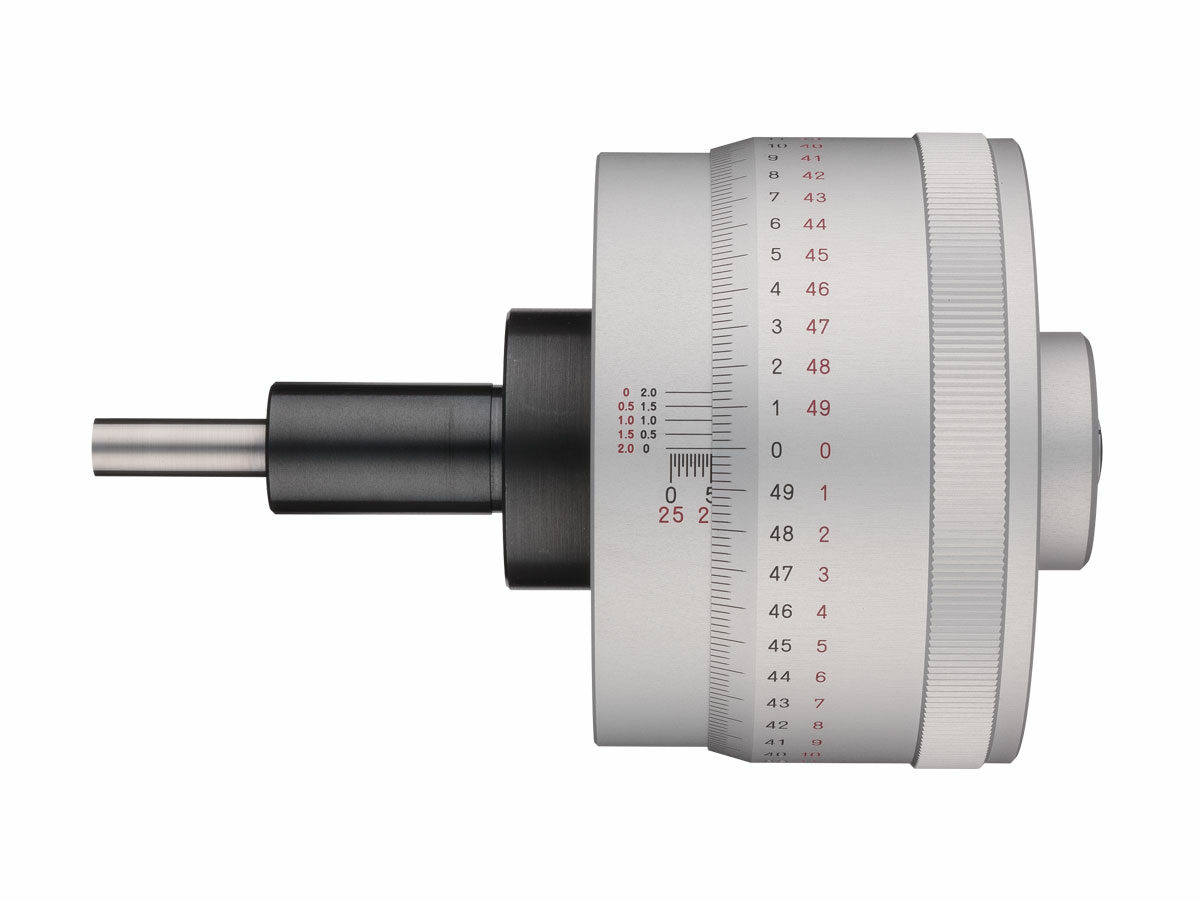

The Mitutoyo high accuracy fine graduation micrometer head, with non-rotating spindle, provides highly accurate stage adjustments with a spindle feed of 0.5mm/rev. Its bi-directional graduation allows for easier reading in both directions.
Features & Benefits
The fine-feeding spindle (0.5mm per revolution) on the Mitutoyo high accuracy micrometer head allows for highly precise stage movements and adjustments. The large diameter thimble is easy to turn, and the bi-directional graduation is easy to read in both directions. The non-rotating spindle reduces torsion on the stage or workpiece for added reliability. The spindle’s flat measuring face is constructed of carbide and is lapped for lasting precision.
- Available in Metric and Inch models
- Mic head has a 85.5mm / 3.37” thimble diameter
- Spindle range is 25mm / 1”
- Spindle diameter 8mm / .315”
- Spindle pitch is 0.5mm / .0197” per rev
- Mic head total length (at stroke end) 4mm / 6.31”
- Flat spindle faces are constructed of carbide and have lapped surfaces for more accurate measurements over time
- Scale surface uses white anodized aluminum that resists corrosion
SERIES 153 Technical Data
| Technology: | Mechanical |
|---|---|
| Measuring Faces: | Flat (carbide tip) |
| Stem: | Plain |
| Scale Surface: | White anodized aluminum |
| Remarks: | Bi-directional graduation |
Product List
| Order No.: | Product Image: | Units: | Range: | Wide Range Accuracy: | Narrow Range Accuracy: | Graduation: | Stem Diameter: | Spindle pitch: |
|---|---|---|---|---|---|---|---|---|
| 153-301 |  |
Metric | 0-25mm | ±1µm | ±0.5µm | 0.00005mm | 18mm | 0.5mm |

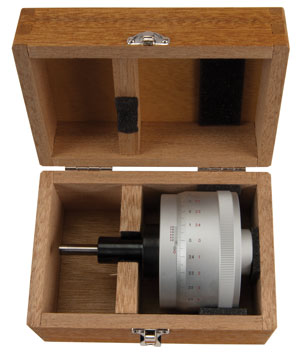

| 153-302 |  |
Inch | 0-1" | ±0.00005" | ±0.00003in | 0.00001" | 0.75" | .025" |
