The Mitutoyo non-rotating spindle standard micrometer head has a hardened-steel spindle and carbide measuring face for a wide range of applications.
Features & Benefits
The Mitutoyo micrometer head, with a non-rotating spindle, is available in three different lengths and two spindle ranges making the mic head ideal for use in many different areas and applications. The non-rotating spindle eliminates torque for more precise, reliable adjustments and measurements.
- Available in Metric and Inch models
- Mic head has a 18mm thimble diameter
- Spindle ranges available are 15mm / .5” and 25mm / 1”
- Spindle diameters available are 6.35mm / .25” and8mm / .314”

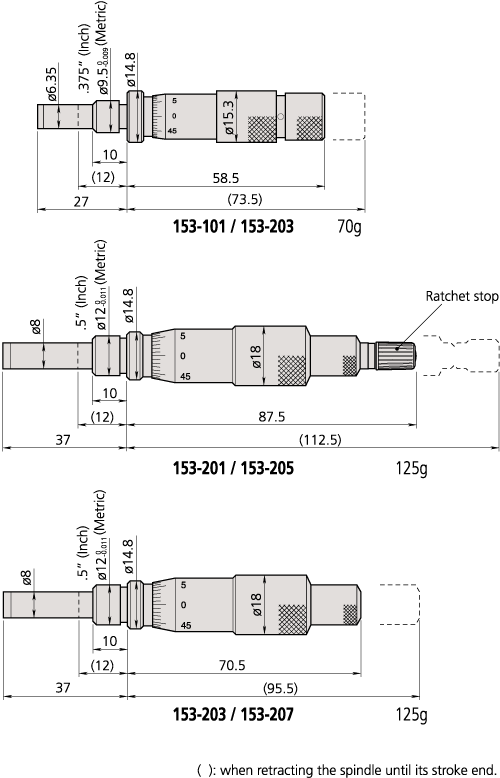

- Mic head total lengths (at stroke end) are 5mm / 3.96”, 132.5mm / 5.22”, and 149.5mm / 5.88”
- Mounting stem diameters are 9.5mm / 3.75” and 12mm / .5”
- Flat spindle faces have lapped surfaces and are constructed of carbide for more accurate measurements over time
- Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
SERIES 153 Technical Data
| Technology: | Mechanical |
|---|---|
| Measuring Faces: | Flat (carbide tip) |
| Stem: | Plain |
| Scale Surface: | Hard chrome plating |
Product List
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Graduation: | Ratchet/Thimble: | Stem Diameter: | Spindle pitch: | Remarks: |
|---|---|---|---|---|---|---|---|---|---|

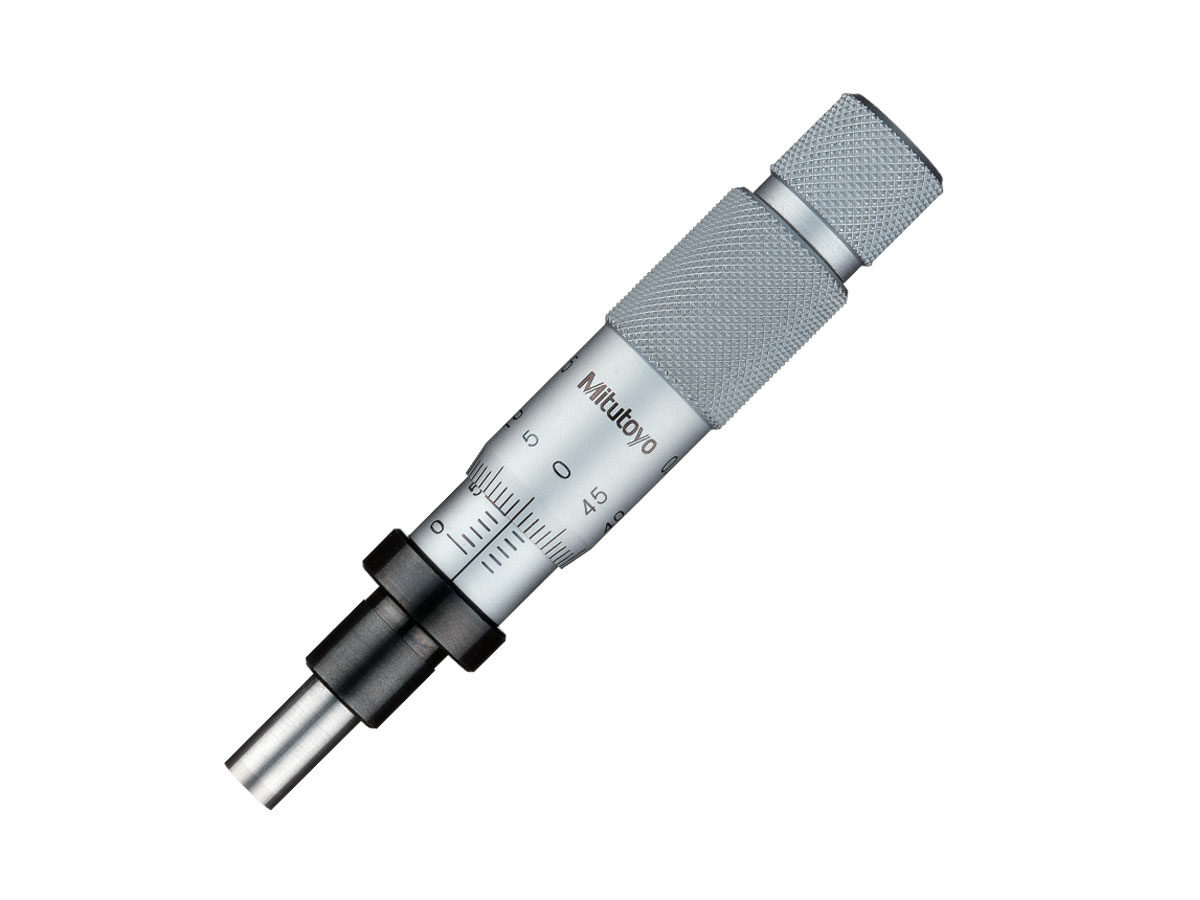

| 153-101 |  |
Metric | 0-15mm | ±3µm | 0.01mm | Plain Thimble | 9.5mm | 0.5mm | - |
| 153-108 | - | Inch | 0-5" | ±0.00015" | 0.0001" | Plain Thimble | 0.375" | 0.025" | w/vernier |
| 153-201 | - | Metric | 0-25mm | ±3µm | 0.01mm | Ratchet Stop | 12mm | 0.5mm | - |
| 153-202 | - | Metric | 0-25mm | ±3µm | 0.001mm | Ratchet Stop | 12mm | 0.5mm | w/vernier |
| 153-203 |  |
Metric | 0-25mm | ±3µm | 0.01mm | Plain Thimble | 12mm | 0.5mm | - |
| 153-204 | - | Metric | 0-25mm | ±3µm | 0.001mm | Plain Thimble | 12mm | 0.5mm | w/vernier |
| 153-205 |  |
Inch | 0-1" | ±0.00015" | 0.0010" | Ratchet Stop | 0.5" | 0.025" | - |
| 153-206 | - | Inch | 0-1" | ±0.00015" | 0.0001" | Ratchet Stop | 0.5" | 0.025" | w/vernier |

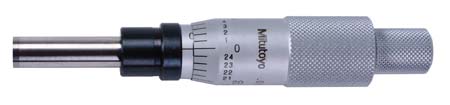

| 153-207 |  |
Inch | 0-1" | ±0.00015" | 0.0010" | Plain Thimble | 0.5" | 0.025" | - |
| 153-208 |  |
Inch | 0-1" | ±0.00015" | 0.0001" | Plain Thimble | 0.5" | 0.025" | w/vernier |
