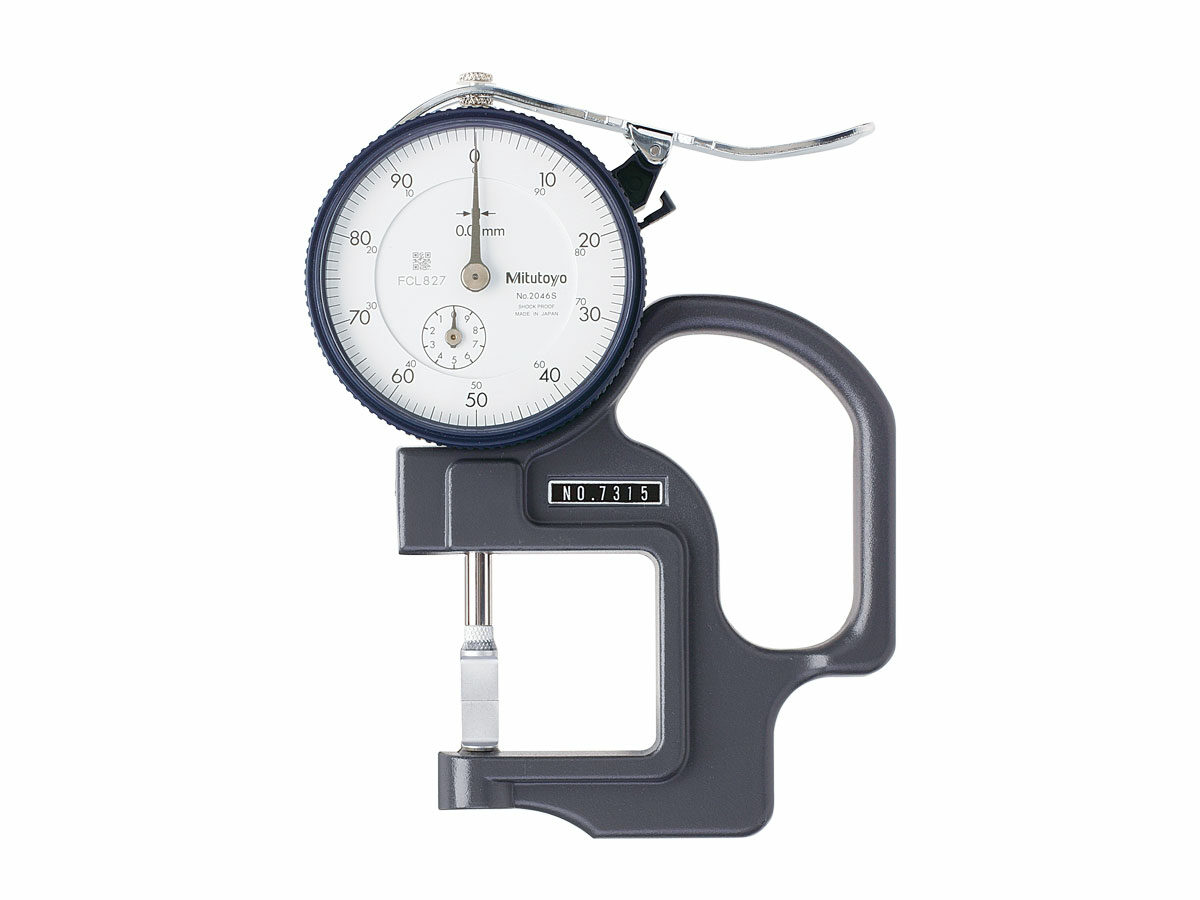

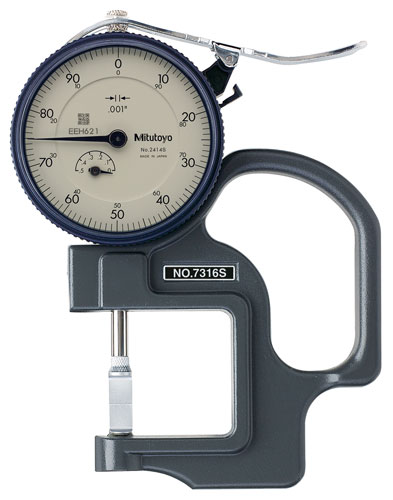

The Mitutoyo blade anvil dial gage is designed with a blade anvil to measure the thickness of grooves with an accuracy of ±0.01mm/.001” and a range up to 10mm/.5”.
Groove Thickness Gages with Blade Anvil
Features & Benefits
The Mitutoyo blade anvil dial gage can measure the thickness of grooves in a wide range of applications. The blade anvil extends into grooves to easily perform measurements that are otherwise extremely difficult to achieve with other indicators or instruments. The contact points are coated with ceramic for durability and corrosion resistance. The grip handle, easy-to-reach lifting lever and spring-loaded spindle allows for quick and easy measurements without sacrificing accuracy.
- Available in Metric and Inch models
- Measures groove thicknesses up to 10mm/.5” in thickness
- White dial face for easier, precise measurement readings
- Anvil and contact point are constructed with ceramic for better corrosion resistance
- Measuring force is 1.4N or less
- Crystal is glare-free with a scratch-resistant coating
- Supplied in a fitted plastic case
Technical Data
| Technology: | Mechanical |
|---|---|
| Measuring Force: | 1.4 or lessN |
| Remarks: | Groove thickness |
| Required Accessories: | - |
Product List
| Order No.: | Product Image: | Units: | Range: | Graduation: | Accuracy: |
|---|---|---|---|---|---|
| 7315A | - | Metric | 0-10mm | 0.01mm | ±15µm |
| 7316S |  |
Inch | - | 0.001" | ±0.001" |
