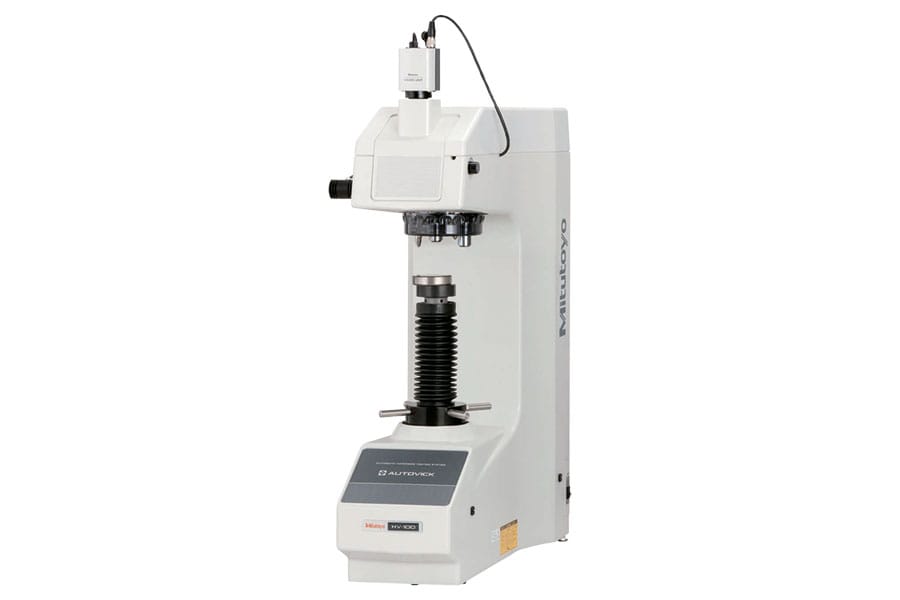

The Mitutoyo HM-210/220 Type D series Hardness Tester uses an autofocus function and motorized stage to increase efficiency and reduce labor costs when testing Vickers hardness.
Features & Benefits
The Mitutoyo HM-210/220 Type D Vickers Hardness Tester is equipped with an autofocus function and motorized XY stage for automatic hardness testing. The Mitutoyo AVPAK10 software package automatically measures the diagonal length of an indentation and calculates the corresponding hardness value. This eliminates the measurement error caused by variation in operator interpretation to reduce costs.
- Integrated vision unit comprised of a 3-million pixel, color USB camera
- AVPAK software supports control, testing and report creation related to hardness testing as well as parameter settings and automatic measurement
- Optional measuring microscope enables magnified observation and measurement of indentations
- Automatic turret mechanism can manually or automatically change the position of the indenter and objective lens
- The electromagnetic force motor in the loading mechanism enables the test force to be freely selected over the wide range of 0.4903mN to 19610mN (0.05gf to 2 kgf)
- Ability to freely set load dwell times delivers control over indentation size
- The long working distance objectives offers a comfortable working distance between the objective and the specimen surface reducing the possibility of collision between the specimen and the objective during focusing operations
- Motorized XY stage unit with digital micrometer head digitally displays positional information during test-site positioning
- V/K models utilize both Vickers and Knoop indenters
Technical Data
| Technology: | Electro Mechanical Force |
|---|---|
| Measuring Method: | Optical- Type D-Automatic-PC |
| Focus: | Automatic |
| Focus Type: | Automatic |
| Display: | Color LCD Touch Screen |
| X - Y Stage Travel: | 50 x 50mm - Optional 100 x 100mm stagemm |
| X - Y Stage Travel Min: | 1µm |
| X - Y Stage: | 130x130mm |
| X - Y Stage Speed Max: | 25mm/sec |
| Max Sample Depth: | 160mm |
| Motorized Focusing Stage Max Range: | 1.4mm |
| Motorized Focusing Stage Min Unit: | 0.1µ |
| Motorized Focusing Stage Max Speed: | 1mm/sec |
| Mass: | 43kg |
| Joystick Controller Functions: | X and Y Lockout, Emergency Stop |
| Joystick Controller Axis: | X, Y and Z (Focus) |
| Joystick Controller Speed Control: | Adjustable H, M, L |
| Joystick Controller Tester Control: | Indent, Turret Position |
| Software: | AVPAK 3.1 |
Product List
| Order No.: | Product Image: | Model: | Force Range: | Loading Rate: | Included Lenses: | Max Sample Height: |
|---|---|---|---|---|---|---|
| 64AAB380P | - | HM-210 Type D | 10-1000 gf / 98.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942, 4903, 9807, User Choice N | 60µ/sec | 10X, 50X | 112mm |
| 64AAB381P | - | HM-210 Type D V/K | 10-1000 gf / 98.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942, 4903, 9807, User Choice N | 60µ/sec | 10X, 50X, 20X | 112mm |
| 64AAB382P | - | HM-220 Type D | .05-2000 gf / 98.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942, 4903, 9807, User Choice, 0.4903, 0.9807, 1.961, 2.942, 4.903, 9.807, 19.61, 29.42, 49.03, 19610 N | 60µ/sec , Variable between 2 and 60µm ≤ 30 gf | 10X, 50, 100X | 74mm |
| 64AAB383P | - | HM-220 Type D V/K | .05-2000 gf / 98.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942, 4903, 9807, User Choice, 0.4903, 0.9807, 1.961, 2.942, 4.903, 9.807, 19.61, 29.42, 49.03, 19610 N | 60µ/sec , Variable between 2 and 60µm ≤ 30 gf | 10X, 50X, 100X | 74mm |
