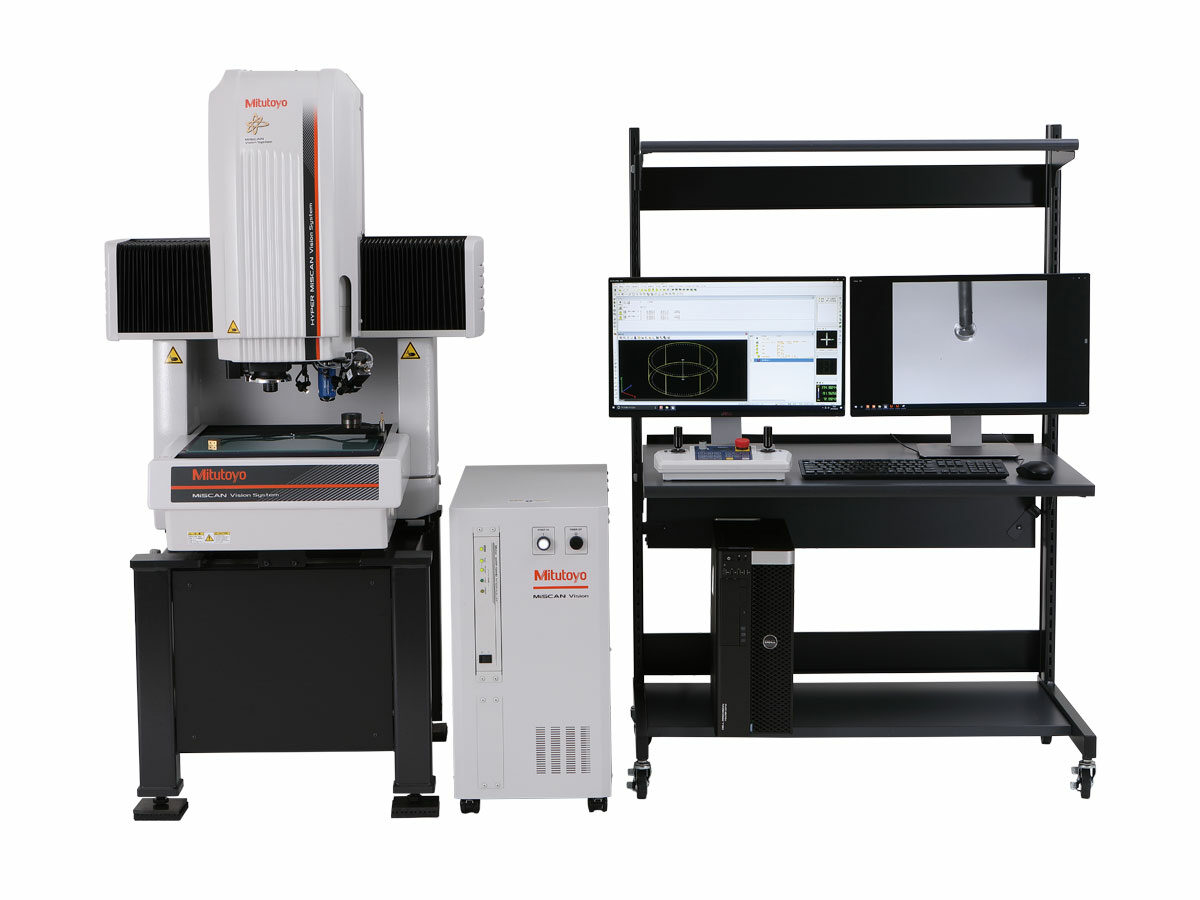

The Mitutoyo MiScan Apex is a highly accurate, multiple sensor microscopic-form measurement system and combines the advantages of both a vision machine and a scanning CMM into a single platform.
Features & Benefits
The Mitutoyo MiScan Apex CNC Vision Measuring System completes demanding tasks in vision-based measurement by combining the advantages of both a vision machine and a CMM. The scanning touch probe can be fitted with either a traditional scanning touch probe or Mitutoyo’s MPP-NANO scanning probe. The MPP-NANO, supporting a stylus ball diameter down to 125 µm, is perfect for small form factor features.
- Main frame structure has a fixed-bridge construction achieving high-accuracy measurements
- A Programmable Ring Light (PRL) allows for fine control and direction for optimal measurement illumination to enhance the edge of inclined surfaces and very small steps
- Pattern focus helps measure low-contrast surfaces with more accuracy
- Programmable turreted zoom changes the magnification multiplier from 1X to 6X
- The accuracy of this model conforms to ISO10360-7:2011 (specifications on request)
Technical Data
| Technology: | CNC VMM |
|---|---|
| Scale Resolution: | 0.0000039370" / 0.00010mm |
| Environment: | 68°F 20°C |
| Camera Type: | B&W CCD |
| Field of View: | 0.0016 x 0.0012 - 0.4937 x 0.3701" / 0.04 x 0.03 - 12.54 x 9.4mm |
| Zoom Type: | Internal Turret |
| Magnification: | 16x - 4800x |
| : | - |
| Required Air Pressure: | 0.5 Mpa - 0.9 Mpa |
| Touch Trigger Probe: | No |
| Color Lighting: | No |
| Optical 3D Scanning (PFF): | No |
| Laser Tracking Autofocus (TAF): | No |
| Vibration Stand: | Optional |
| 10360-4 MPETHP/MPTTHP SP25: | 2.5 |
| 10360-4 MPETHP/MPTTHP MPP-NANO: | 0.6 |
| ISO 10360-5:2010PFTU,MPE SP25: | 1.9 |
| 10360-5:2010PFTU,MPE MPP: | 0.6 |
Product List
| Order No.: | Model: | Range X-Axis: | Range Y-Axis: | Range Z-Axis: | Workpiece Max Load: | Workpiece Max Stand Control: | Dimensions: |
|---|---|---|---|---|---|---|---|
| 364-511-10S | MVS-X404P1L-D (MiScan Apex 404 SP25) | 16" / 400mm | 16" / 400mm | 10" / 250mm | 88lbs / 40kg | 1277lbs / 579kg | 55 x 40 x 54" / 1407 x 1027 x 1380.5mm |
