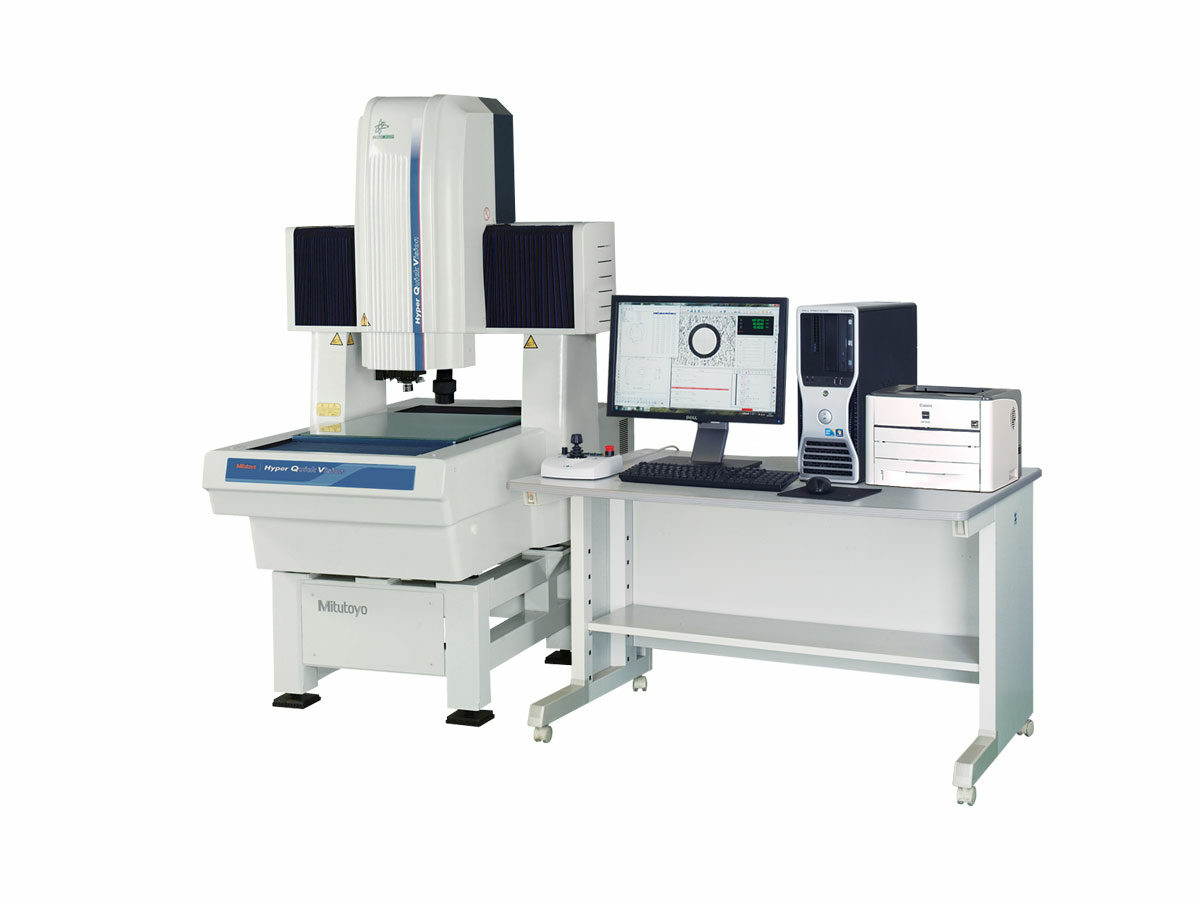

Quick Vision Hyper Hybrid Type 1

The Mitutoyo Quick Vision Hyper Hybrid CNC Vision Measuring System uses a camera and laser to measure surface contours at high speeds on the Hyper accuracy platform. Mitutoyo’s proprietary double-pinhole technique is used for the displacement sensor’s detection method. Compared to the knife-edge and triangulation techniques, this method has the advantage of a more optimal laser angle.

• Focusing point method creates excellent measurement reproducibility
• Laser has a wide focal depth of ±0.5 mm which makes it possible to perform measurements within a dynamic range
• Viewer function displays a preview in order to set filter parameters and calculation items for laser scanning measurement while visual inspection is in progress
• A variety of scanning tools including line, cross, circle and area are provided as standard
• Programmable turreted zoom changes the magnification multiplier from 1X to 6X
• A Programmable Ring Light (PRL) allows for fine control and direction for optimal measurement illumination to enhance the edge of inclined surfaces and very small steps
• Main frame structure has a fixed-bridge construction achieving high-accuracy measurements
• Standard temperature compensation offers higher accuracy in measurements
• The accuracy of this model conforms to ISO10360-7:2011 (specifications on request)
