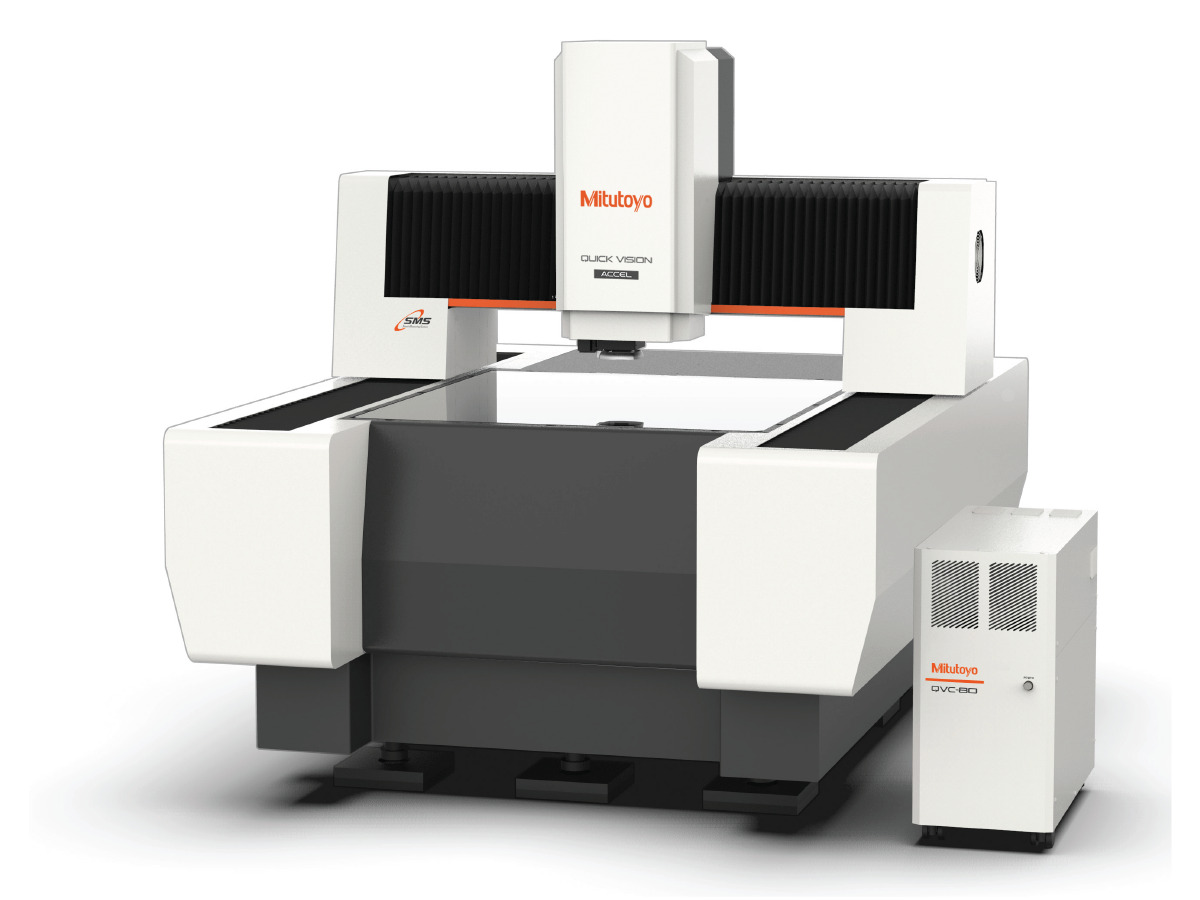

The Mitutoyo Quick Vision ACCEL CNC Vision Measuring System was designed with a primary focus on measurement speed and efficiency. The machine drives the X- and Y- axes at 400 mm/s.
Features & Benefits
The Mitutoyo Quick Vision ACCEL Vision Measuring System is optimal for measurements of large format parts such as printed circuit boards whose density and resolution continue to increase, as well as metal masks and screen plates. The Quick Vision ACCEL is also optimal for measurements on glass circuit boards, film and other components of display panels and is suited to measure thin and light-weight workpieces and workpieces with short life cycles.
- The moving-bridge type structure eliminates the need for a moving stage to facilitate a simplified design of the workpiece fixture reducing man-hours required for fixture fabrication and inspection
- QV ACCEL performs highly accurate height measurements using functional edge detection and image auto focus
- Pattern focus function performs auto focusing even on transparent objects such as film and glass
- A Programmable Ring Light (PRL) allows for fine control and direction for optimal measurement illumination to enhance the edge of inclined surfaces and very small steps
-
Optional Tracking Auto Focus (TAF) maintains focus while measuring across warped part surfaces
SERIES 363 Technical Data
| Technology: | CNC VMM |
|---|---|
| Environment: | 68°F 20°C |
| Rate of Change Per Hour: | ±1°C / ±1.8°F |
| Camera Type: | B&W CCD |
| Field of View: | 0.0016 x 0.0012 - 0.4937 x 0.3701" / 0.04 x 0.03 - 12.54 x 9.4mm |
| Zoom Type: | Internal Turret |
| Magnification: | 16x - 4800x |
| Touch Trigger Probe: | No |
| Color Lighting: | No |
| Optical 3D Scanning (PFF): | Optional |
| Laser Tracking Autofocus (TAF): | No |
| Vibration Stand: | Optional |
| Range Z-Axis: | 6" / 150mm |
Product List
| Order No.: | Model: | Range X-Axis: | Range Y-Axis: | Workpiece Max Load: | Mass (incl. stand and controller): | Dimensions: |
|---|---|---|---|---|---|---|
| 363-315-10Y | QV-A808P1L-D (Accel 808) | 31" / 800mm | 31" / 800mm | 22lbs / 10kg | 4520lbs / 2050kgs | 58 x 73 x 62" (1475 x 1860 x 1578mm) |
| 363-335-10Y | QV-A1010P1L-D (Accel 1010) | 39" / 1000mm | 39" / 1000mm | 66lbs / 30kg | 6505lbs / 2950kgs | 75 x 83 x 63" (1912 x 2116 x 1603mm) |
