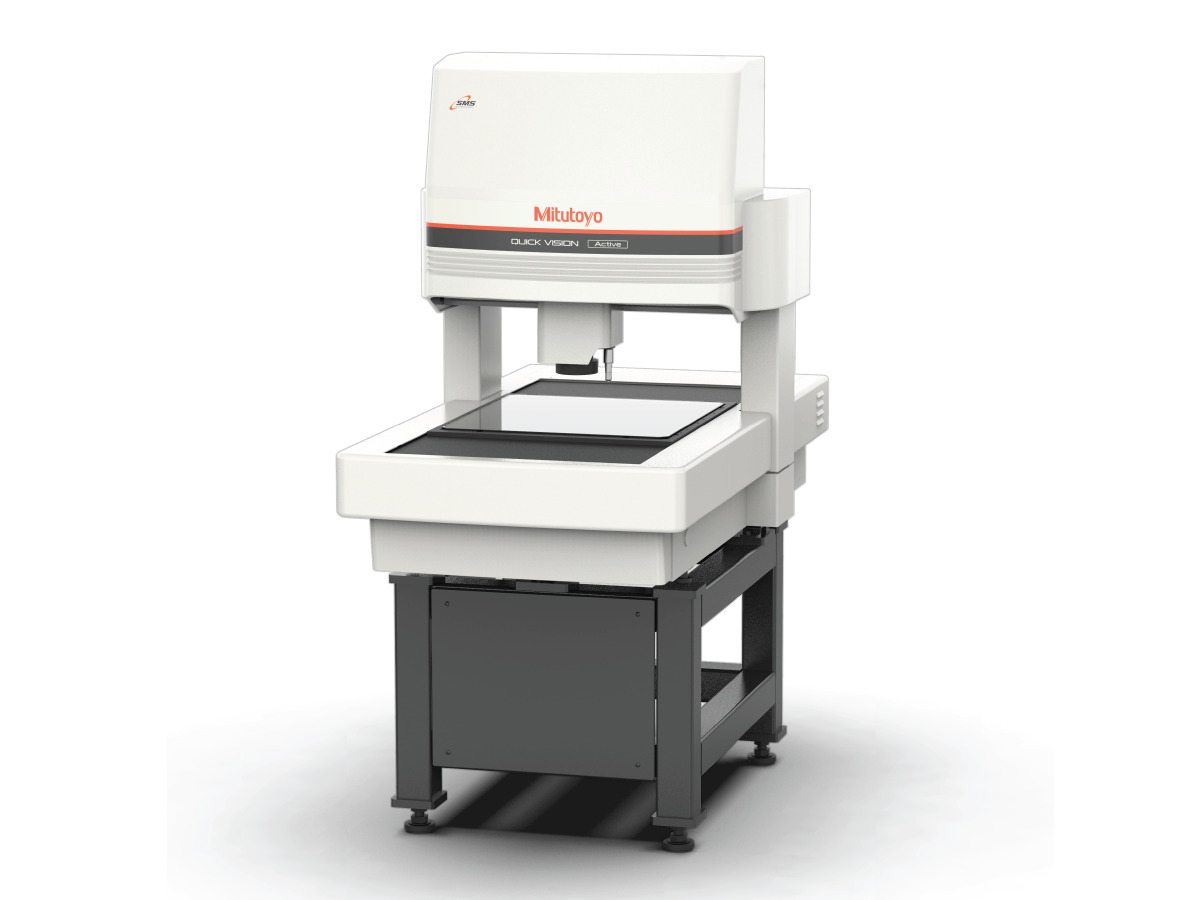

The Mitutoyo Quick Vision Active measuring system produces highly accurate, fast non-contact 3D measurements in a compact machine at an affordable price point.
Features & Benefits
The Quick Vision Active Vision Measuring System combines the flexibility of multiple high-quality interchangeable zoom lenses with a high-resolution, high-speed CMOS camera for accurate 3D touchless measurements. Its edge detection capability and functions of the measurement software, QVPAK, enables the Quick Vision Active to surpass the conventional image of a standard compact vision measurement model.
- Automatic focus improves measurement throughput
- The QV Active features a Z-axis stroke range of 150-200mm in a compact model CNC System
- High-quality Mitutoyo developed zoom optics with interchangeable lenses provides workpiece measurement flexibility
- An optional touch probe delivers pinpoint measurements for complex dimensions to supplement 3D, non-contact measurements
- Programmable LED stage, coaxial and 4-quadrant ring light sources improves responsiveness and measurement throughput
SERIES 363 Technical Data
| Technology: | CNC VMM |
|---|---|
| Scale Resolution: | 0.0000039370" / 0.00010mm |
| Environment: | 68°F 20°C |
| Camera Type: | 3MP Color CMOS |
| Field of View: | 0.0382 x 0.0303 - 0.5354 x 0.4252" / 0.97 x 0.77 - 13.6 x 10.8mm |
| Zoom Type: | 8-Step Tube |
| Magnification: | 13x - 183x |
| Touch Trigger Probe: | Optional |
| Color Lighting: | No |
| Optical 3D Scanning (PFF): | No |
| Laser Tracking Autofocus (TAF): | No |
| Vibration Stand: | Optional |
Product List
| Order No.: | Model: | Range X-Axis: | Range Y-Axis: | Range Z-Axis: | Workpiece Max Load: | Mass (incl. stand and controller): | Dimensions: |
|---|---|---|---|---|---|---|---|
| 363-109-20 | QV-L202Z1L-D | 10" / 250mm | 8" / 200mm | 6" / 150mm | 22lbs / 10kg | 342lbs / 155kgs | 30 x 22 x 33" (767 x 570 x 845mm) |
| 363-110-20 | QV-L404Z1L-D | 16" / 400mm | 16" / 400mm | 8" / 200mm | 44lbs / 20kg | 714lbs / 324kgs | 51 x 31 x 40" (1303 x 776 x 1004mm) |
