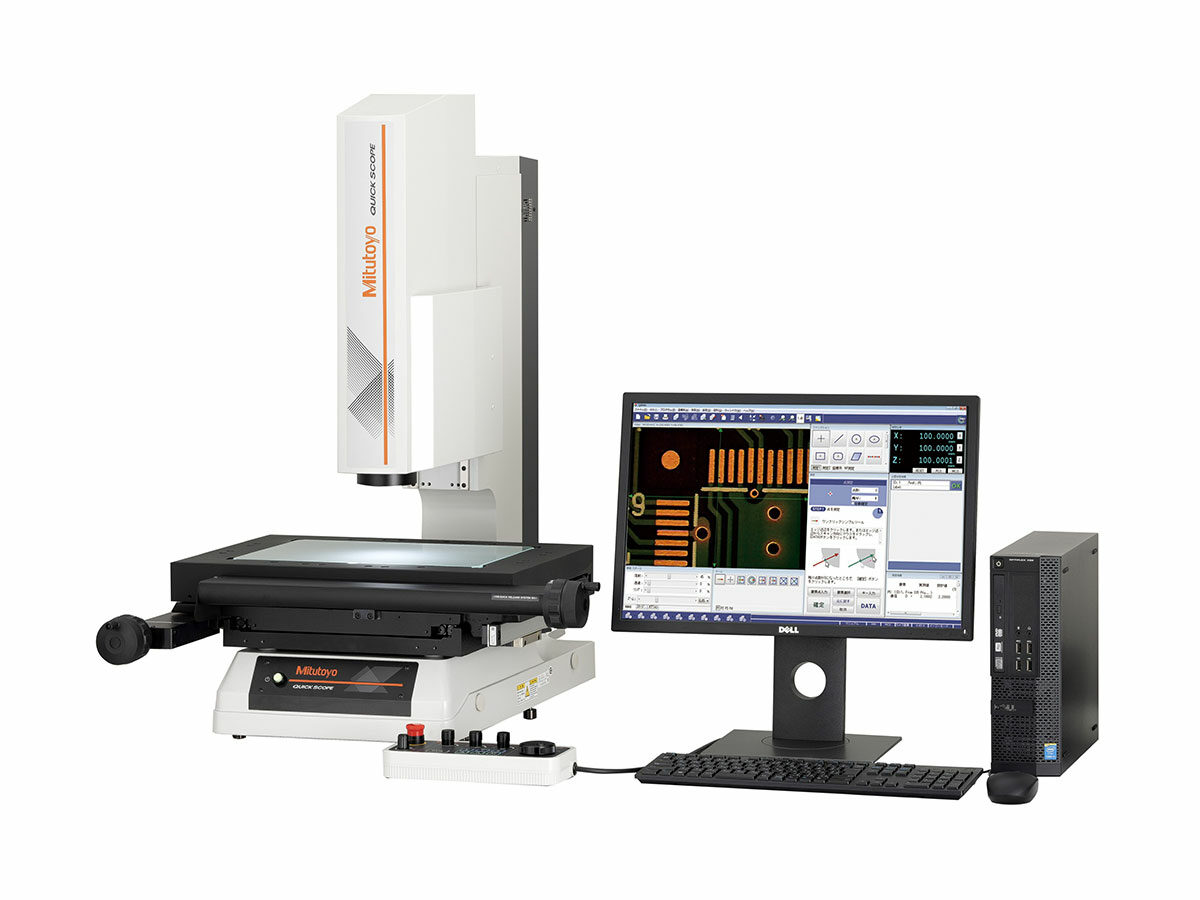

The Quick Scope series digital microscope with new optical technology provides industry leading vision measurement accuracy with easy-to-use, intuitive software for any operator. The Quick Scope is a manual system with high-speed, high-accuracy optical auto-focus for 3D measurements.
Features & Benefits
The Mitutoyo Quick Scope Vision Measuring System delivers high-precision measurement capabilities with an easy-to-use, intuitive operation for improved measurement efficiency. The Quick Scope series easily performs manual work piece observation or measurements of single or multiple items.
- Surface, contour and ring light illumination options enable users to configure the QS lighting to meet a variety of measurement needs
- Powerful, Windows®-based QSPAK software offers a spectrum of measuring and analysis capabilities
- Programmable low to high optical magnification zoom for wide field of view observation and high-magnification measurement without changing lenses
- The quick release system on the stage enables instant switching between coarse and fine movements
- Quick Navigation function enables the user to repeat measurements quickly
SERIES 359 Technical Data
| Technology: | Manual VMM |
|---|---|
| Scale Resolution: | 0.0000039370" / 0.00010mm |
| Environment: | 68°F 20°C |
| Camera Type: | 3MP Color CMOS |
| Field of View: | 0.0382 x 0.0303 - 0.5354 x 0.4252" / 0.97 x 0.77 - 13.6 x 10.8mm |
| Zoom Type: | 8-Step Tube |
| Magnification: | 13x - 183x |
| Touch Trigger Probe: | No |
| Color Lighting: | No |
| Laser Tracking Autofocus (TAF): | No |
| Vibration Stand: | No |
| Range Z-Axis: | 6" / 150mm |
Product List
| Order No.: | Model: | Range X-Axis: | Range Y-Axis: | Workpiece Max Load: | Mass (incl. stand and controller): | Dimensions: |
|---|---|---|---|---|---|---|
| 359-713-10 | QS-L2010/AFC | 8" / 200mm | 4" / 100mm | 22lbs / 10kg | 158.8lbs / 72kgs | 25 x 30 x 28" (624 x 769 x 722mm) |
| 359-714-10 | QS-L3017/AFC | 12" / 300mm | 7" / 170mm | 44lbs / 20kg | 308.7lbs / 140kgs | 27 x 33 x 36" (682 x 837 x 916mm) |
| 359-715-10 | QS-L4020/AFC | 16" / 400mm | 8" / 200mm | 33lbs / 15kg | 321.9lbs / 146kgs | 30 x 33 x 37" (757 x 837 x 930mm) |
