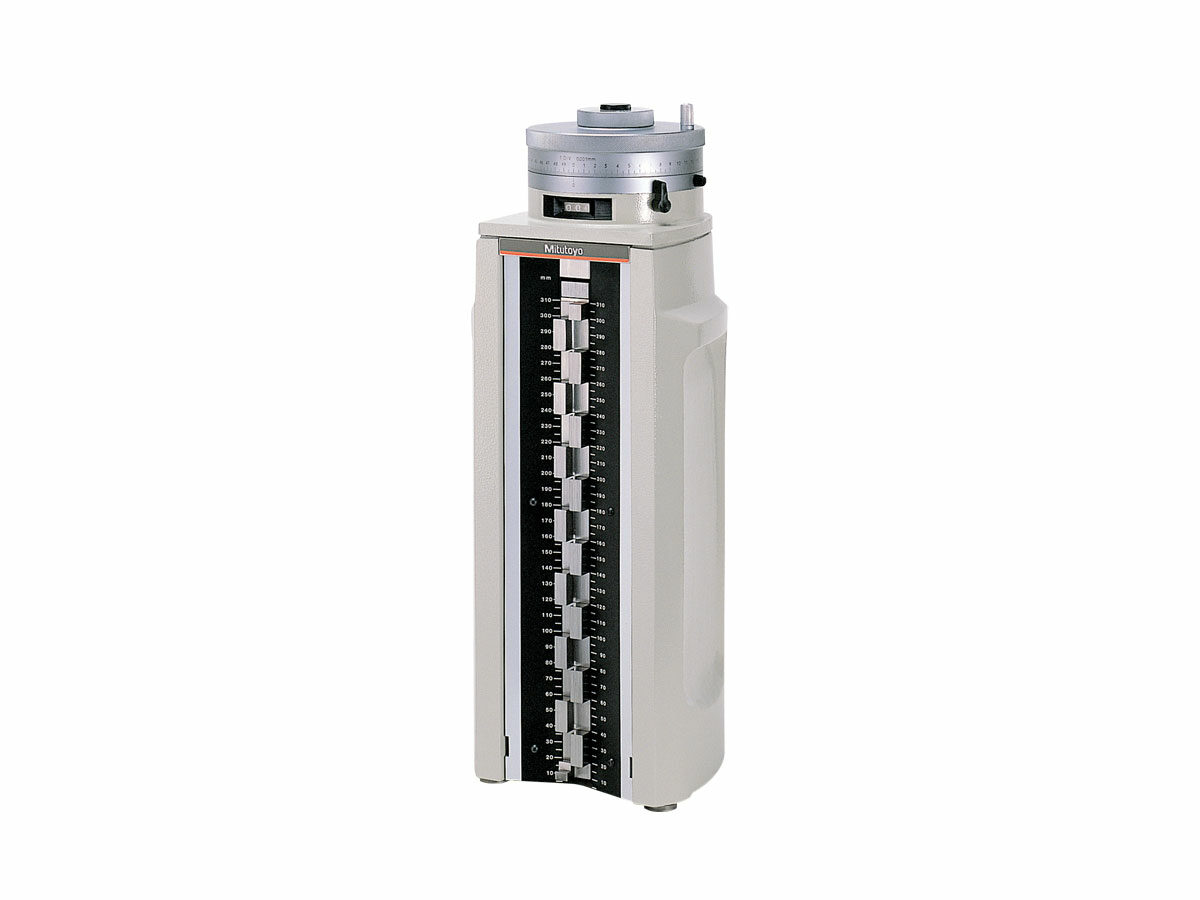

The Mitutoyo Manual Height Master uses a set of sequentially aligned gage blocks within the housing to provide reference calibration for height gages and bore gages.
Height Master
Features & Benefits
The Mitutoyo Manual Height Master features a speed dial type micrometer head with fine adjustment graduated to 0.00001” for height setting, providing highly accurate height and bore gage calibration reference. The reference blocks may be stacked straight or staggered to expose both the top and bottom measuring faces depending on the application. The final confirmation measurement is the sum of the measuring block position, the counter value and the micrometer head reading.
- Available in Inch/Metric
- Staggered block step: 20mm/1”
- Straight block step: .5”
- Range of confirmation measurement is 5mm/.2” to 310mm/12.2”
- Counter tracks the number of micrometer head turns
- Each height master is supplied with a gage block for zero setting
- Cast iron housing provides stable height measurement and long service life
- Three carbide-tipped pads lapped for accurate reference and durability
- Supplied in a fitted wooden case
Technical Data
| Provided with Inspection Certificate: | Yes |
|---|---|
| Technology: | Mechanical |
| Mass: | 23kg |
Product List
| Order No.: | Product Image: | Units: | Range: | Block Step: | Block step type: | Graduation: | Block pitch accuracy: | Parallelism of Blocks: | Micrometer Head Accuracy: | Resolution: | Character Height: | Mic head travel: | Pitch Per Revolution: | Hysteresis: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 515-310 |  |
Inch | .5 - 12.2" | .5" | Straight | .00001" | ±.00005" | .00004" | ±.00005" | .001" | 0.16" | 1" | .25" | .00004" | - |
| 515-311 | - | Inch | .5 - 12.2" | 1" | Staggered | .00001" | ±.00005" | .00004" | ±.00005" | .001" | 0.16" | 1" | .25" | .00004" | - |
| 515-322 | - | Metric | 5 - 310mm | 20mm | Staggered | 0.001mm | ±(1.5)µm | 1µm | ±1µm | 0.01mm | 4mm | 20mm | 0.5mm | 1µm | - |
